High-dynamic motion
Up to 4G acceleration and 200 m/min coordinated speed are listed for the X3 and X3 Pro.
Bodor flagship sheet laser u00b7 UK supply, installation and support
Bodor X Series Fibre Laser
The Bodor X Series combines a high-dynamic motion platform, an upgraded cast-iron machine bed, intelligent vision and AI-assisted cutting functions for manufacturers focused on fast, stable sheet-metal production.
Final specification, availability and performance depend on model, laser power, software, options, material and application. Confirm all details in a current written quotation.
4G
maximum acceleration listed for X3 and X3 Pro
200 m/min
maximum coordinated speed listed by Bodor
20 MP
dual-camera vision system specification
UK support
specification, installation, training and service
Built around the complete production cycle
High-speed cutting is only useful when setup, positioning and stability keep pace.
The X Series is designed to reduce non-cutting time while supporting repeatable production through high-dynamic motion, vision-based edge finding, intelligent nesting, automatic nozzle changing and a rigid cast-iron foundation.
Intelligent setup
AI-assisted parameters, rapid edge finding and remnant recognition help reduce manual preparation.
Stable machine structure
An upgraded integrated cast-iron bed is designed to control vibration during repeated high-speed moves.
Automation ready
Loading, processing and unloading can be connected into a higher-capacity production workflow.
Choose the production level
Compare Bodor X3 and X3 Pro.
Both models are presented by Bodor as intelligent high-speed sheet laser systems. The Pro model is positioned for a higher level of production consistency and integrated handling. Confirm the precise UK configuration with World Machinery.

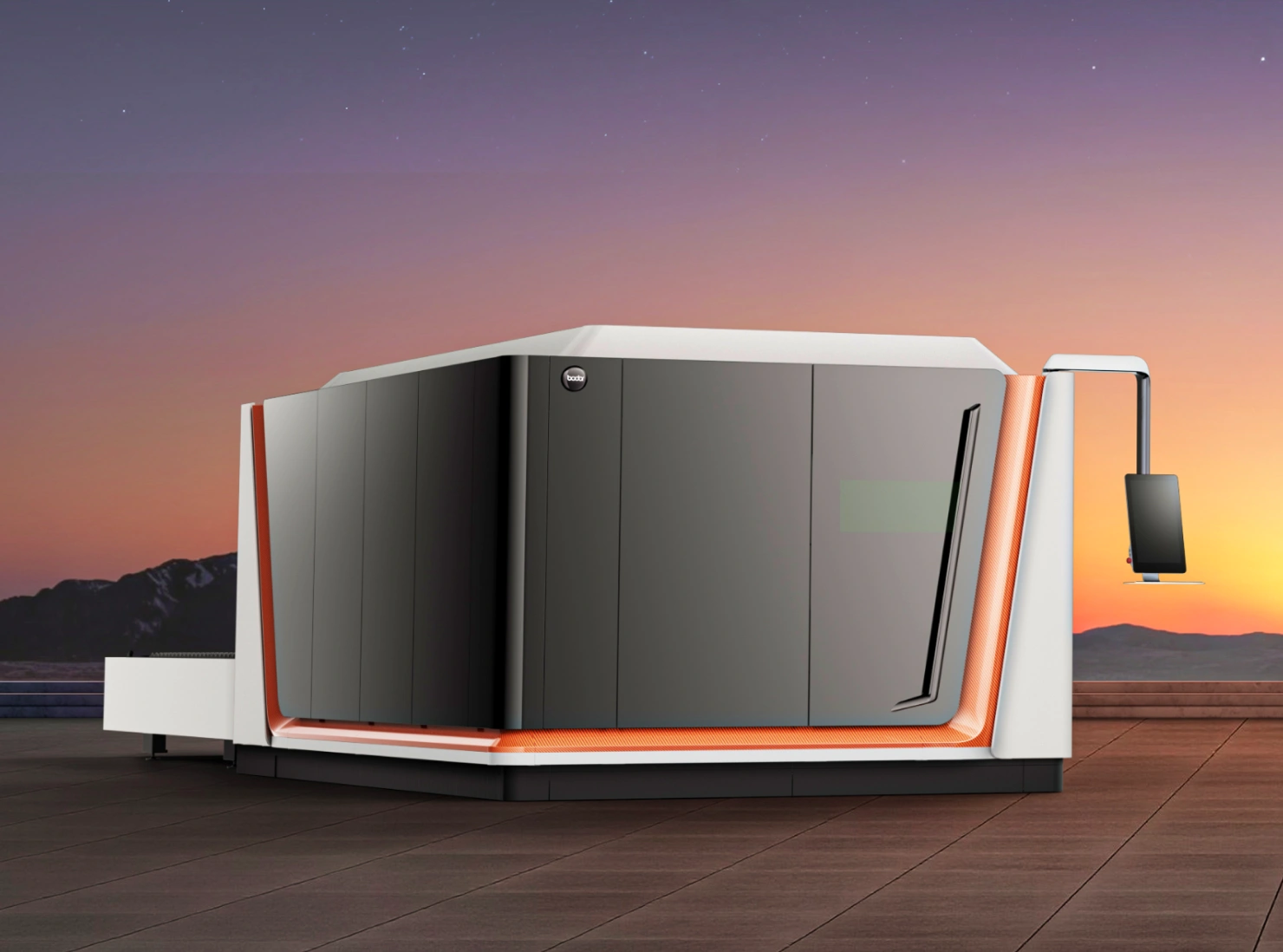

Intelligent high-speedBodor X3
A flagship enclosed sheet-metal laser platform combining dynamic motion, intelligent assistance and a cast-iron structural foundation.
- Low-pass filtering: 10 HznMaximum acceleration: 4GnMaximum coordinated speed: 200 m/minnBodor states up to 15% efficiency improvement versus similar market products

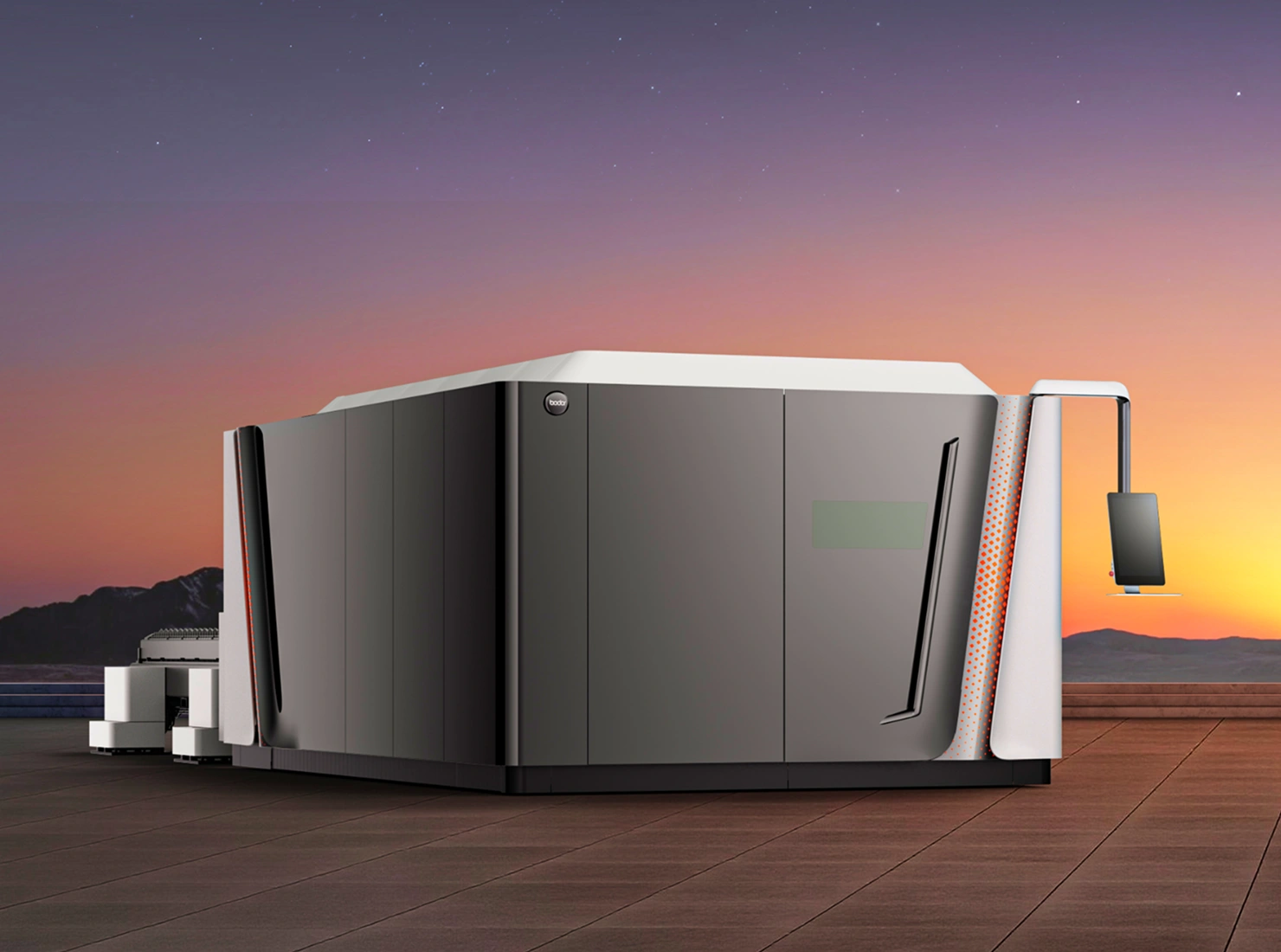

Higher-output configurationBodor X3 Pro
The Pro configuration adds production-focused refinements including the precision lifting exchange-table concept shown by Bodor.
- Low-pass filtering: 11 HznMaximum acceleration: 4GnMaximum coordinated speed: 200 m/minnBodor states up to 25% efficiency improvement versus similar market products

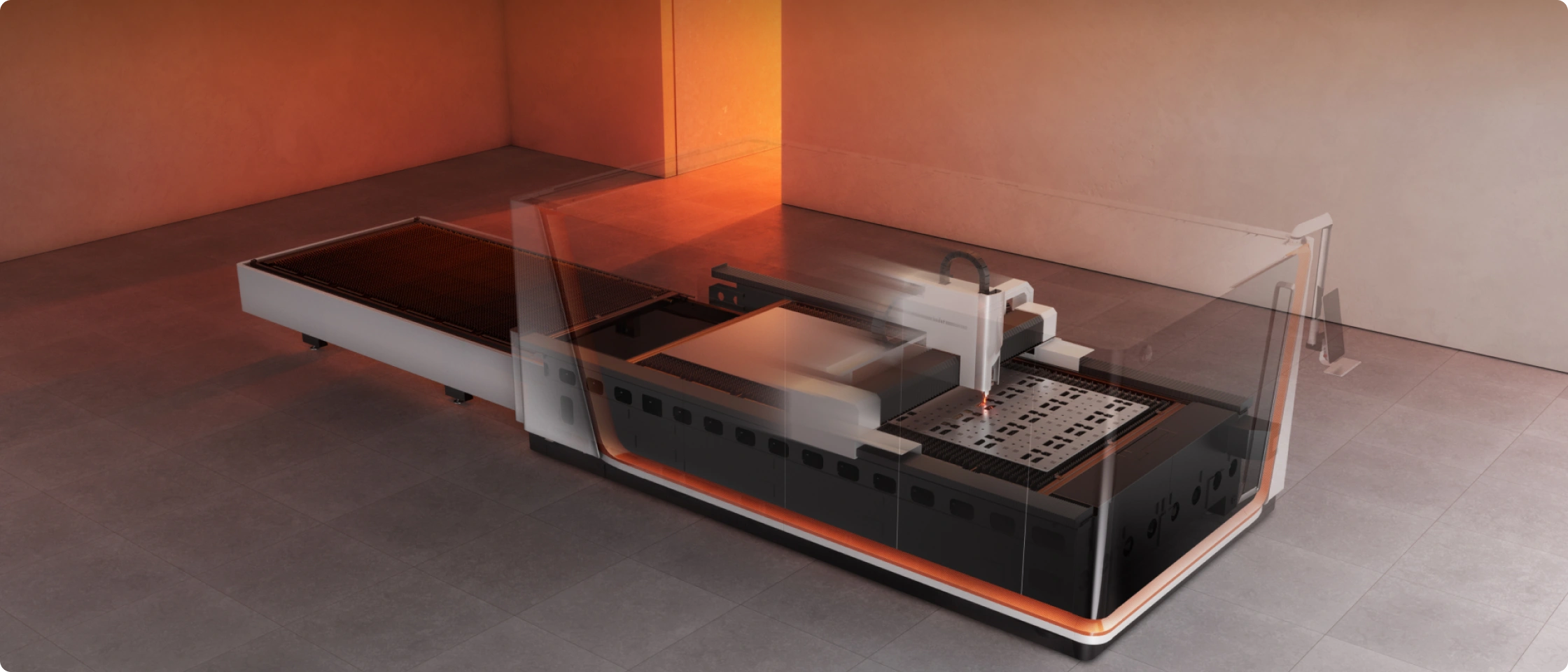

Second-generation cast-iron machine bed
A rigid, high-damping foundation for repeated high-speed movement.
Bodor describes an upgraded integrated cast-iron bed engineered for long-term stability. Its published laboratory data includes a 10-ton heavy-duty structure, tensile strength up to 300 MPa, enhanced vibration damping and low deformation after heat treatment and machining.
10 tonnes
heavy-duty machine-bed weight described by Bodor
300 MPa
published tensile-strength figure
90%u2193
published vibration-reduction comparison
0.05 mm/mu00b2
published deformation figure
Performance comparisons and durability statements are Bodor Laser Lab claims. Request the current technical specification and test basis for the model offered in the UK.
L2 AI cutting assistance
Support for parameter setup, diagnosis and operator questions.
Bodor presents three intelligent functions intended to simplify operation. Availability varies by region, machine specification and software package.
AICutter
Assists with intelligent cutting-parameter tuning to make process setup easier for operators.
AI fault diagnosis
Provides AI-assisted troubleshooting guidance designed to speed up the first diagnostic steps.
BodorAI Assistant
Offers an industry-focused conversational interface for machine and process questions.

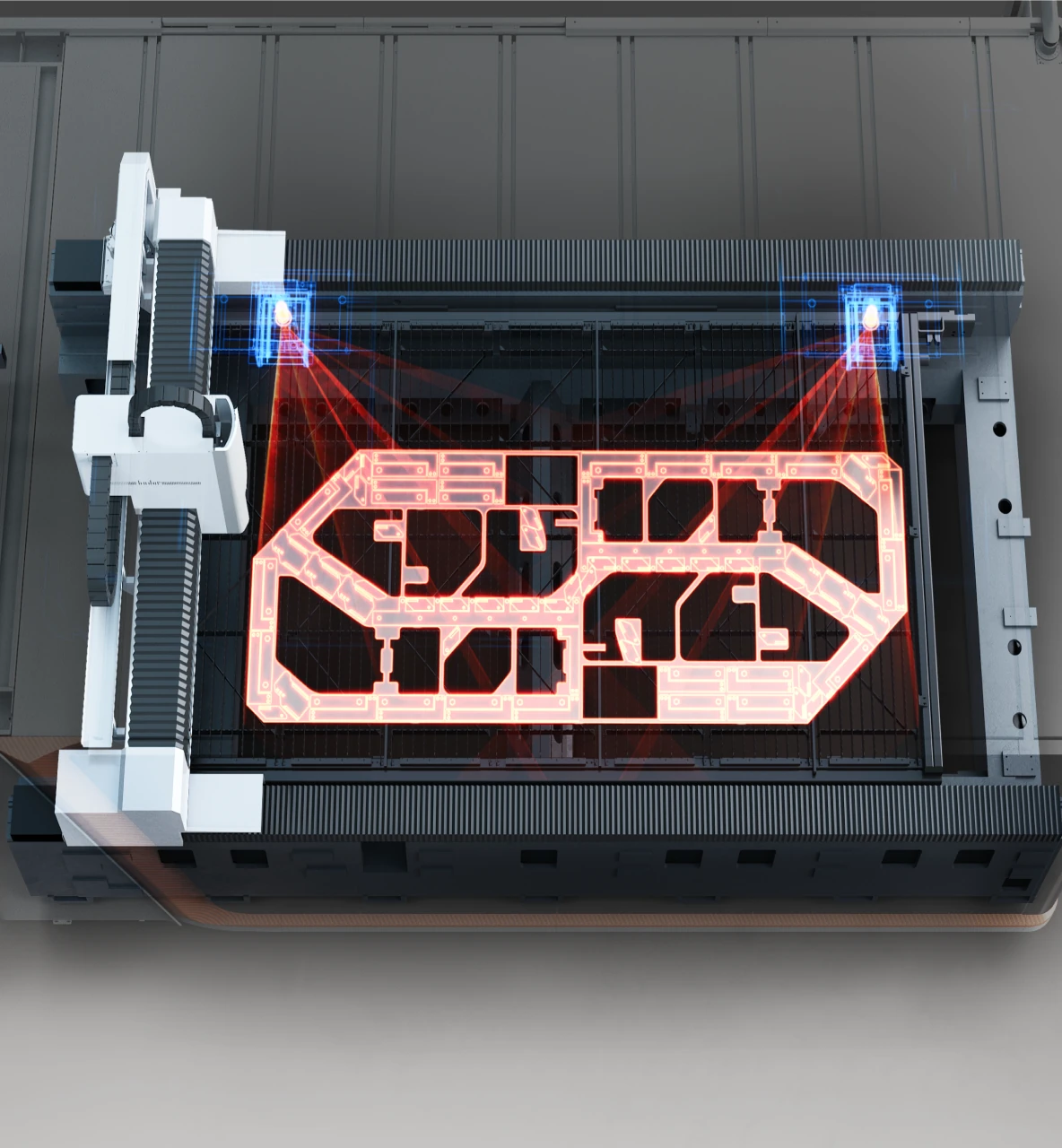

Vision positioning and material utilisation
Find the sheet, recognise remnants and prepare the next cut faster.
The second-generation vision-positioning system combines high- and low-mounted cameras for edge finding and workpiece location. Bodor also describes panoramic remnant recognition integrated with BodorNest for secondary material reuse.
Intelligent edge finding
Bodor states that vision positioning can replace capacitive edge sensing and improve positioning efficiency.
Dual-camera system
High- and low-mounted cameras work together to locate sheets and multiple workpieces.
Claimed material utilisation
Panoramic recognition and nesting are intended to make better use of irregular remnants.

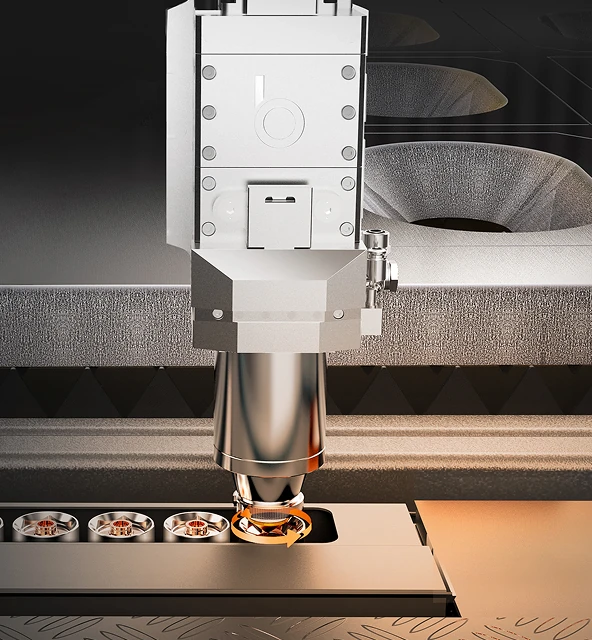

Nozzle positioning
Published maximum positioning accuracy for the automatic nozzle-changing system.
Production-focused engineering
Clean extraction, protected operation and consistent table exchange.

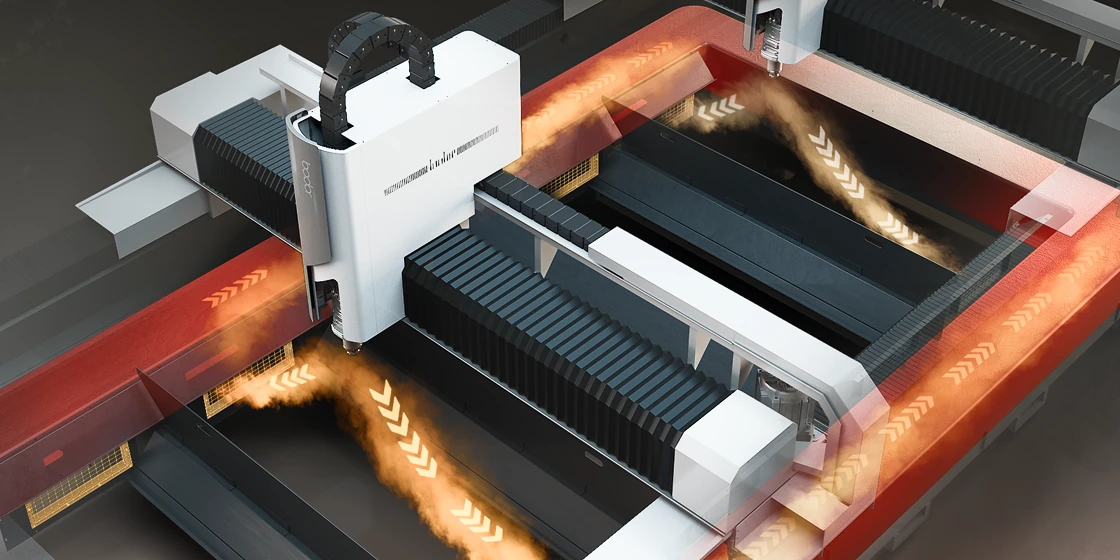

Intelligent zoning dust removal
Independent servo-driven zones open and close in step with the cutting path to concentrate negative-pressure extraction where it is needed.

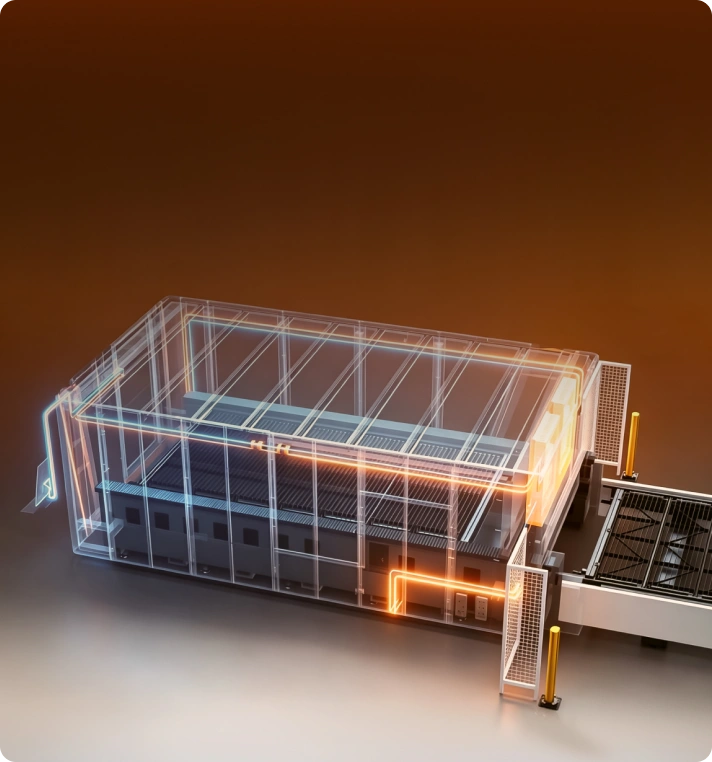

High-level safety protection
Bodor describes 43 safety-protection designs, including a fully enclosed machine, active monitoring and a dual safety-circuit concept.

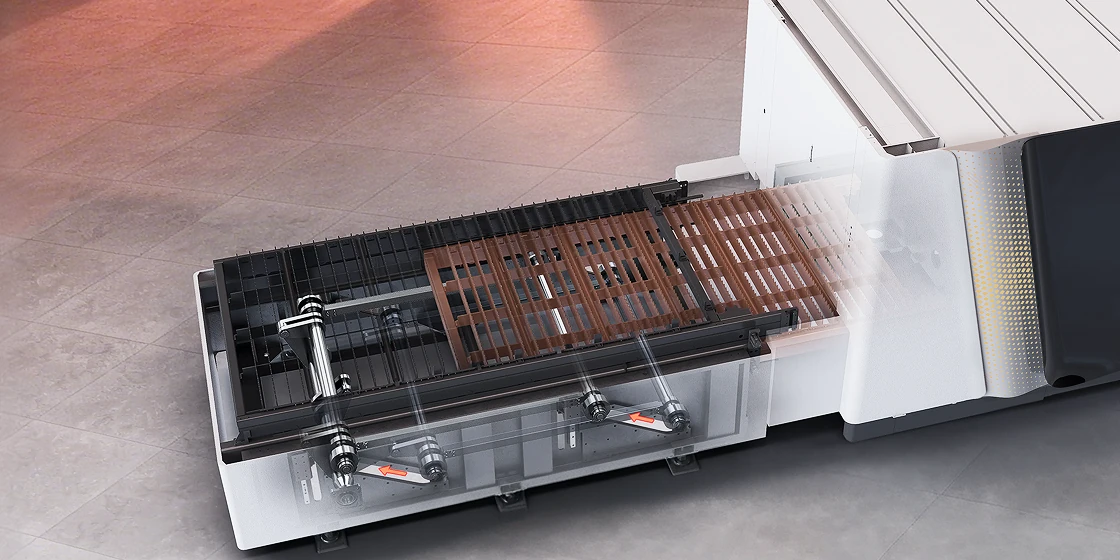

Precision lifting exchange table
The X3 Pro example keeps loading, unloading and cutting at the same height to reduce lever-arm distance and support long-term accuracy.
World Machinery u00b7 UK project support
Specify, install and support the Bodor X Series in the UK.
World Machinery can coordinate the discussion around cutting trials, laser power, sheet format, extraction, gases, site preparation, automation, operator training, maintenance and finance. The final scope should be confirmed in the written quotation and order documentation.
Application review and test cuts
Share drawings, materials, maximum thickness and target cycle times so the specification starts with real production work.
Delivery, installation and training
Plan access, utilities, commissioning and operator familiarisation before the machine arrives.
UK service and maintenance
Planned maintenance, diagnostics, parts assistance and service-contract options help protect uptime.
Finance discussion
Potential machinery-finance structures can be explored, subject to application, status and lender approval.
Bodor X Series questions
Answers before you request a final specification.
The published information is a useful starting point. Final performance, options, compliance and delivery scope must be confirmed for the exact machine offered.
What is the Bodor X Series?
The Bodor X Series is a flagship enclosed sheet-metal fibre laser platform designed around high-dynamic motion, a cast-iron machine bed, intelligent vision, AI-assisted setup and automation-ready production.
What is the difference between X3 and X3 Pro?
Bodor lists both at up to 4G acceleration and 200 m/min coordinated speed. It lists 10 Hz low-pass filtering and a 15% efficiency comparison for X3, versus 11 Hz and a 25% comparison for X3 Pro. The Pro model is also shown with a precision lifting exchange-table concept. Confirm the exact UK configuration before ordering.
Does the X Series include AI functions?
Bodor describes AICutter parameter tuning, AI fault diagnosis and BodorAI Assistant. The manufacturer states that AI features vary by region, machine specification and software, so availability must be confirmed in the quotation.
How does the vision system help production?
The system is designed to locate sheet edges and multiple workpieces quickly, recognise irregular remnants and support one-click nesting through BodorNest. This can reduce preparation time and improve material utilisation.
Is the Bodor X Series fully enclosed?
Bodor presents the X Series with a fully enclosed design and additional active and circuit-level safety measures. A site-specific risk assessment and confirmation of the supplied machine standard are still required.

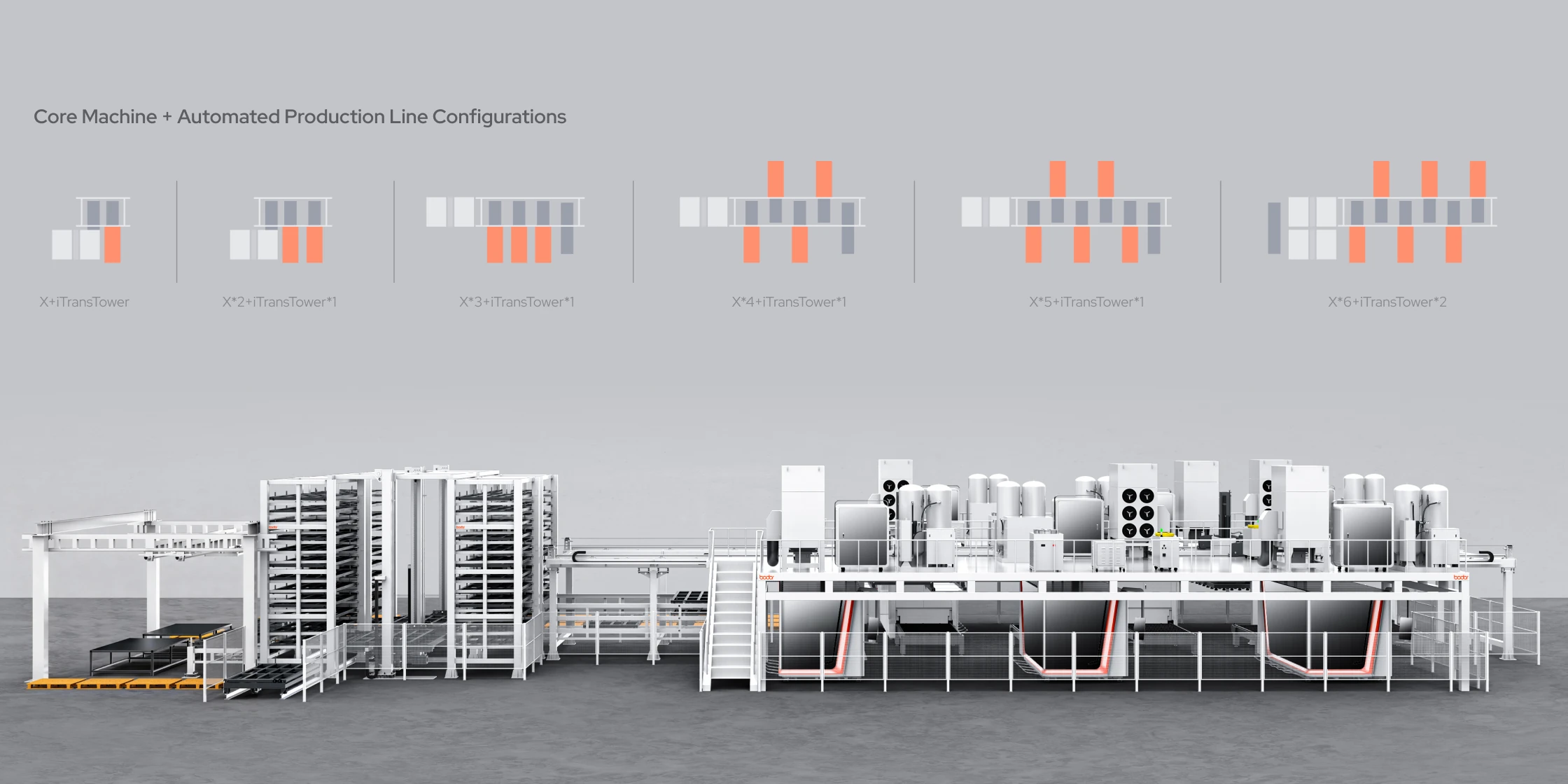

Can the X Series be connected to automation?
Yes. Bodor describes unattended cutting workflows and integration with loading, unloading and material-storage systems. The correct cell layout depends on sheet format, throughput, available space and handling strategy.
Can I arrange sample cuts or a demonstration?
Yes. Send World Machinery your drawings, materials, thicknesses, sheet sizes and production targets so the team can discuss an appropriate demonstration or test-cut plan.
Does World Machinery provide UK installation and support?
World Machinery promotes UK delivery, installation, operator training and after-sales support. Confirm the exact included scope, response arrangements and service options in the written quotation.
Request an X Series discussion
Send the cutting requirementu2014not only a request for a price.
Include the material grades, common and maximum thicknesses, sheet size, part mix, drawings, target output, automation requirement and purchase timescale. This gives the team enough information to prepare a useful first recommendation.
