Bodoru10-1

Multi-Material and Multi-Benefit Integration

bodor lbolt

Comprehensive Solution

The U10 supports versatile processing capabilities for profiles, tubes, and metal sheets, allowing seamless handling of diverse steel structures.

Intelligent Processing

Equipped with real-time deviation correction, the U10 ensures accurate processing, reducing the need for manual adjustments and the risk of laser head collisions

Multiple Compatibilities

With multiple compatibilities for cutting foundations and Tekla drawings, the U10 optimizes workflow, significantly reducing working costs.

Bodoru10-2

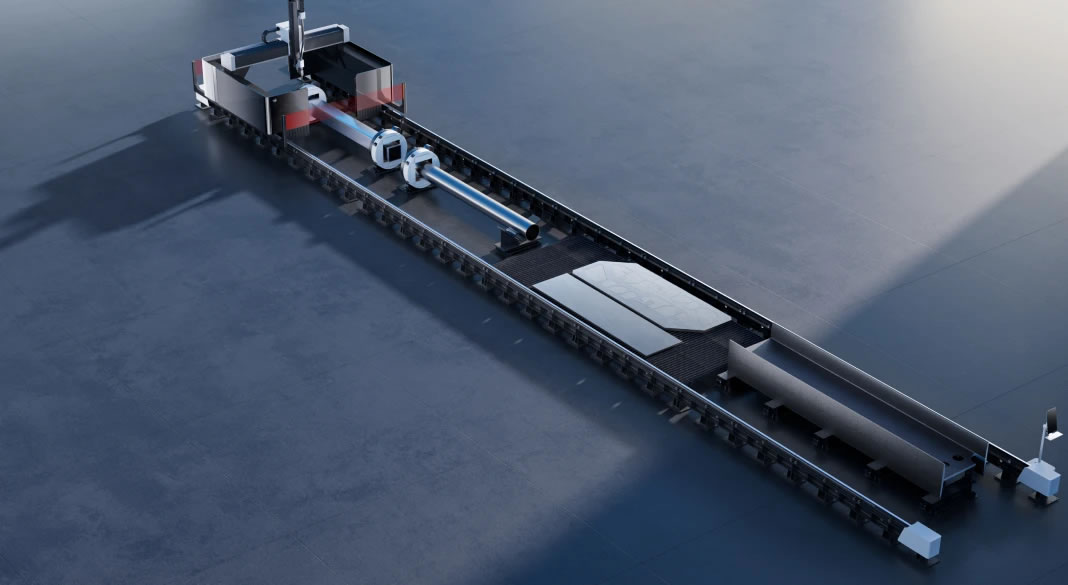

Multi-Material Loading for Continuous Processing
Bodoru10-3
Intelligent Deviation Correction and Positioning
Bodoru10-4
Adapts to Tekla Drawings
Bodoru10-5
Profiles, Sheets, Tubes Crafted Right

All-in-One Processing the Ultimate Steel Solution

Bodoru10-6
Bodoru10-7

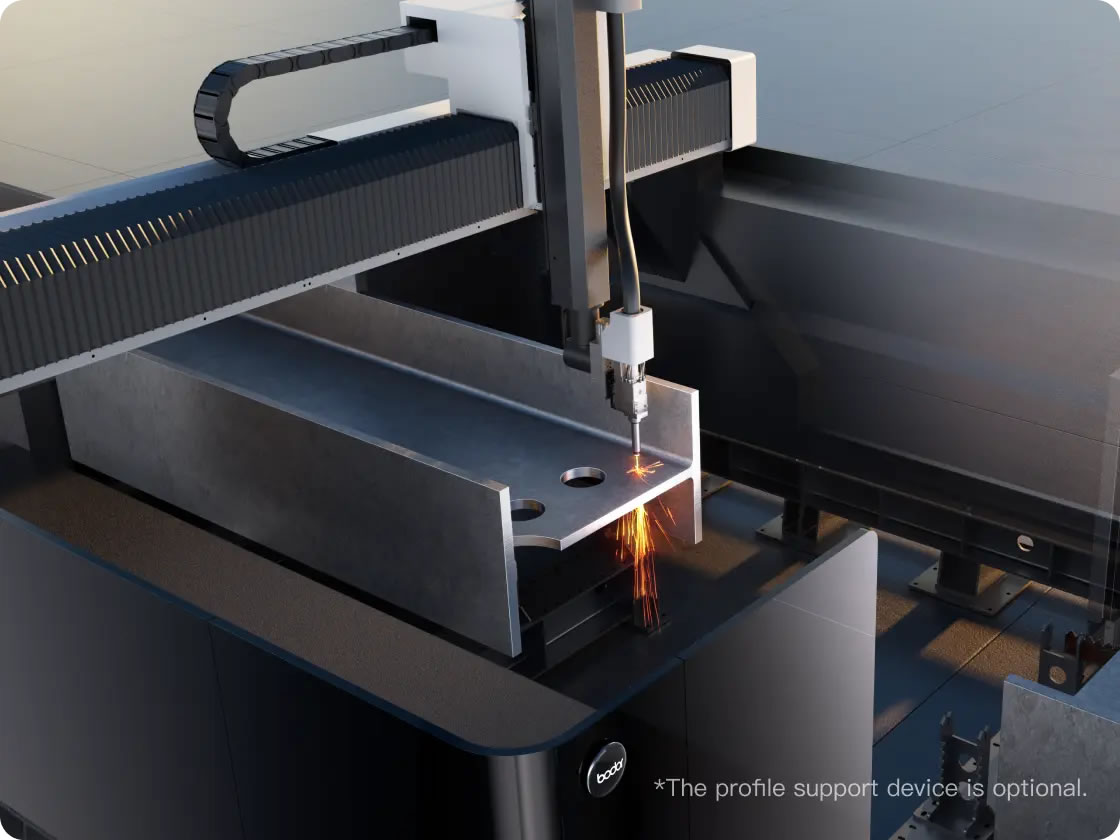

Profile Cutting
One-Stop Solution

U10 can process profiles with widths up to 1500mm, heights up to 600mm and lenghts up to 28000mm. Whether standard or special-shaped profiles, it can provide one stop processing for perforation, beveling, notching, marking and cutting.

*Variable diameter beams/widened wing plates/overhead crane beams/longitudinal beams for vehicles/flat-bulb steel processing functions are optional.
Bodoru10-8

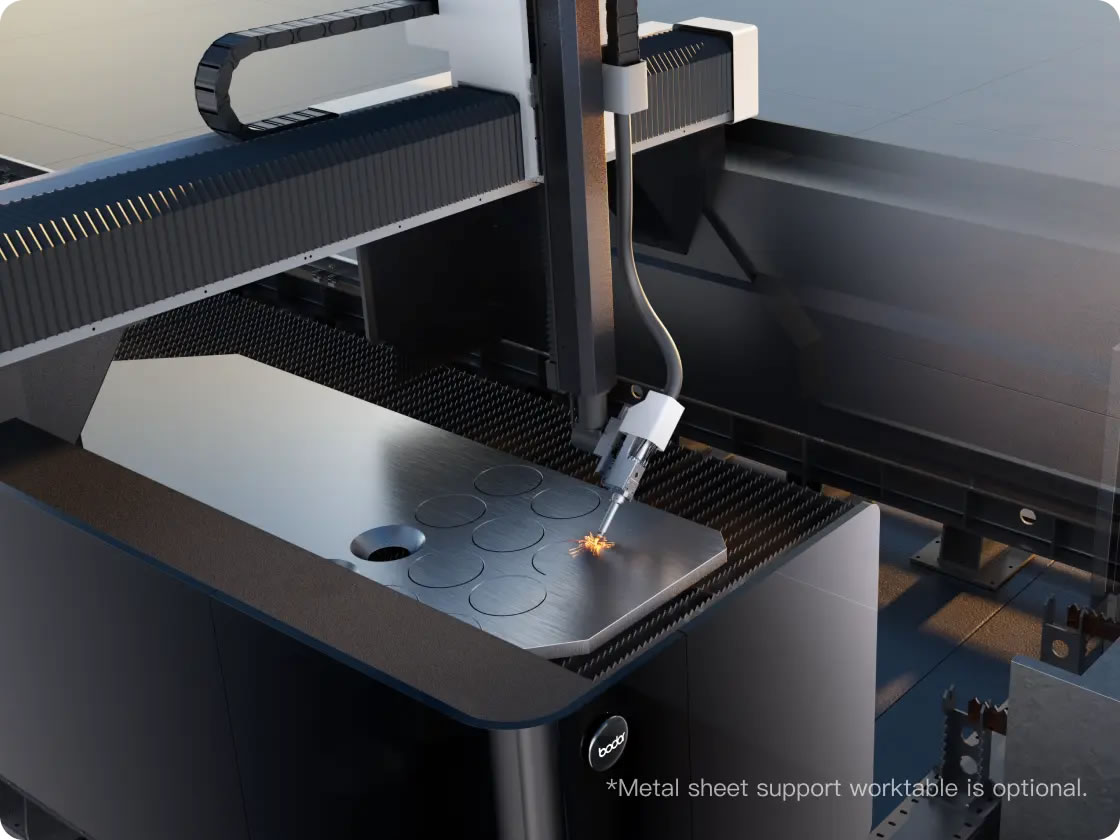

Metal Sheet Cutting With the Blade Worktable

Equipped with the blade worktable, U10 can easily perform perforation, vertical cutting, and bevel cutting on metal sheets.
*The worktable size can be customized up to a length of 28000mm.
Bodoru10-9

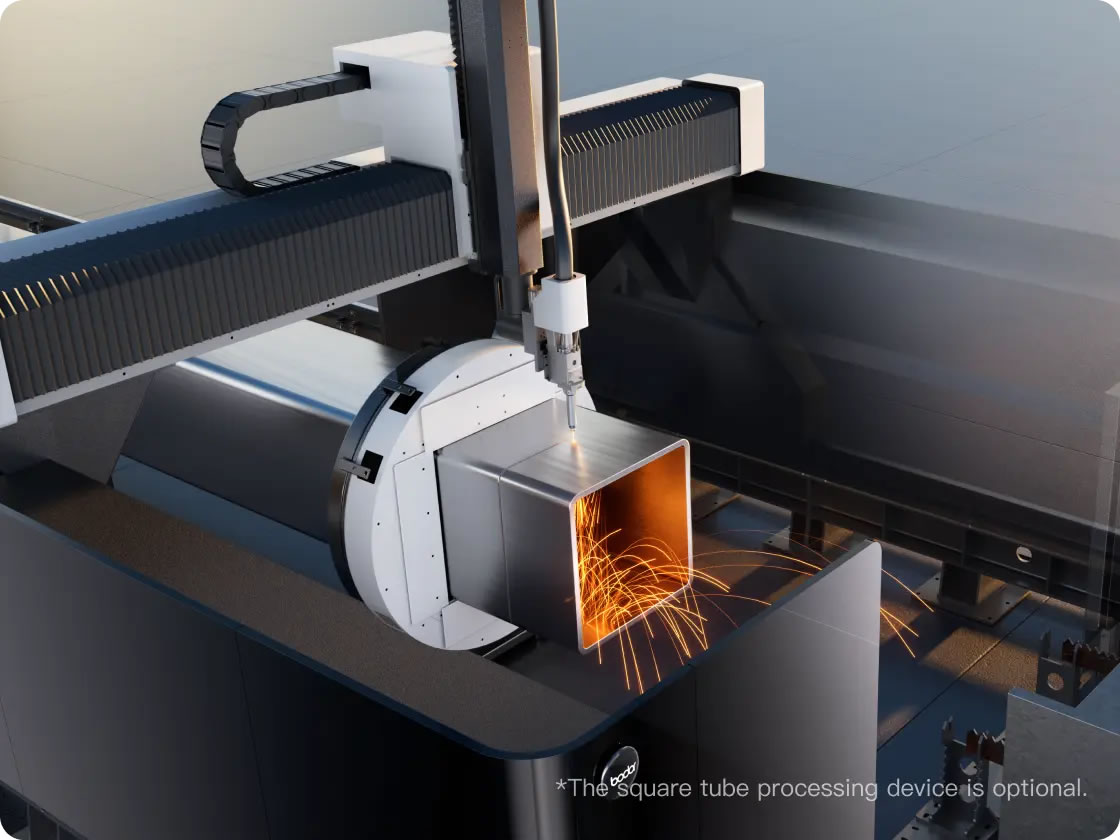

Tube Cutting Capability
With the tube processing device, the U10 enables perforation, bevel cutting, intersection line cutting, and accommodates square and round tubes from 200-850mm, as well as round tubes with diameters of Φ100
Bodoru10-10
Bodoru10-12
Bodoru10-11
Flexible Foundation Compatibility


U10 is compatible with plasma cutting foundations on the market, eliminating the need to replace the foundation for laser processing equipment. This significantly saves installation time and labor costs, allowing you to quickly enter production.

Optional steel foundation for easier and more flexible installation.
Bodoru10-13
Technical Parameters
Bodoru10-14
Processing Range(Profile)

100mm×100mm-1500mm×600mm

Processing Range(Sheet-Straight Cutting)

3200mm×28000mm

Processing Range(Sheet-Bevel Cutting)

2800mm×28000mm

Processing Range(Square+Round Tube)

200mm-850mm

Processing Range(Round Tube Only)

φ100mm-φ1200mm

Processing Length

≤28000mm

Powers

6000-20000W

Overall Dimensions

33900mm×5030mm×4100mm

Bevel Cutting

.

Fly Cutting

.

Intelligent Deviation Correction

X

*All parameters on this page are based on testing by Bodor Laser Laboratory and only for reference.
