Cutting Parameter Auto-Match

Big things come in small packages

Compact, flexible design

i series increases productivity of your production line without requiring much space. The system has been designed to take up as little floor space as possible.

Eco-friendliness

The fully enclosed design leads to more economical processing and faster performance, with a much lower power consumption.

Efficiency

i series’ compact system demonstrates high productivity thanks to Bodor’s intelligent functions, as they optimize material flow, boost output, and increase the operating safety of the production line.

Overall Performance

Max. Acceleration

Note: The “Overall Performance Improved by 30%”
mentioned above is relative to Bodor’s previous-generation product.

It adopts high-performance bus servo motors to achieve the absolute leading
dynamic performance (compared with similar products in the market), significantly
improving processing efficiency to ensure that every second you invest creates value

30% up

1.5G

The 3rd-Generation Mortise-and-Tenon Welding Bed Frame

Rigidity Increased by

30%

Structural Strength Enhanced by

25%

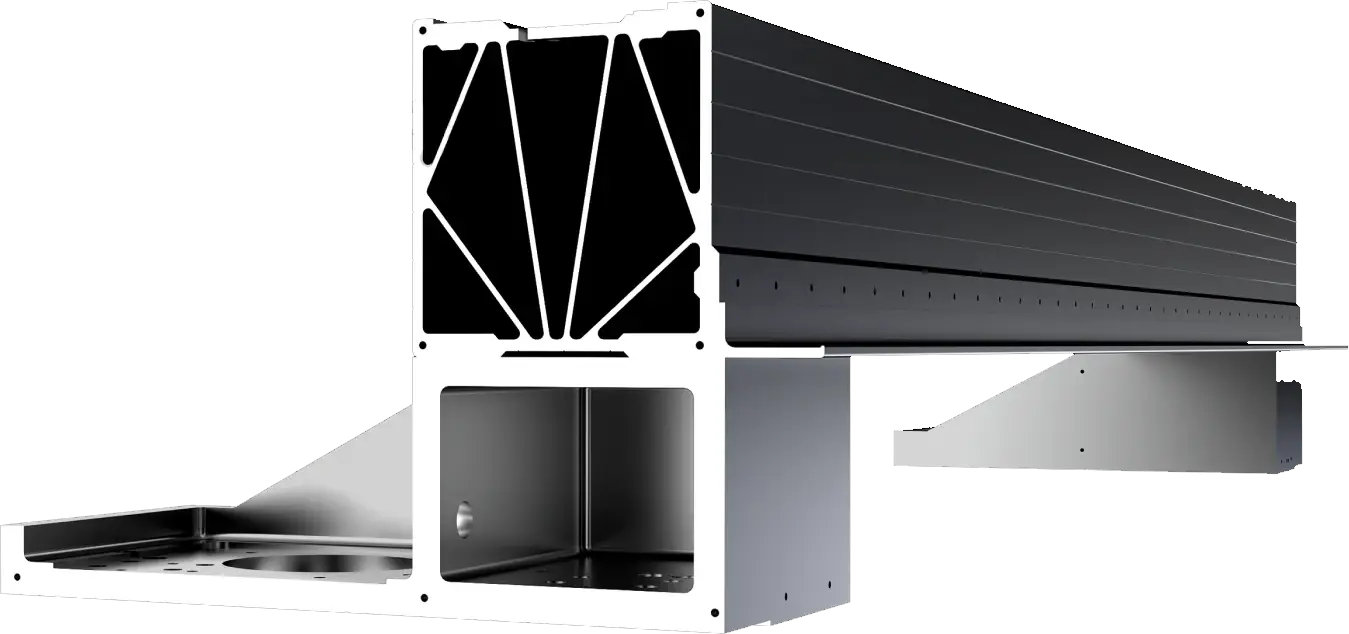

Aerospace Aluminum Beam

Weight Reduced by

Structural Strength Enhanced by

30%

25%

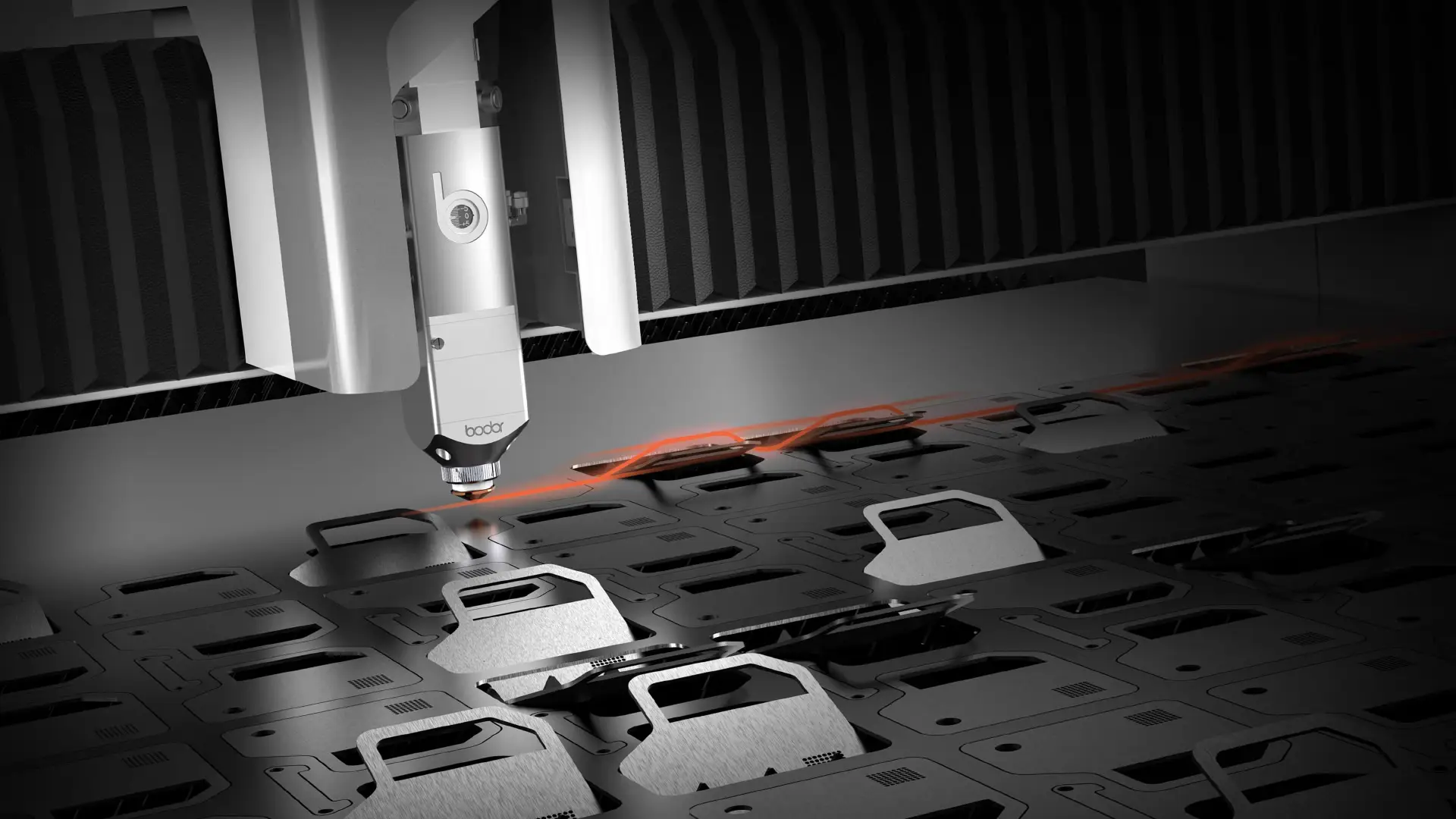

Laser Head

Intelligent Collision Avoidance

Self-developed servo-following sensors and path avoidance algorithms
reduce the risk of laser head collision significantly.

Optional

Laser Scanning Cutting Fearless High-Reflective Sheets

Scanning Cutting Pioneer Ideal Cutter for High-Reflective Materials When cutting high-reflective materials, the optical path changes constantly, reducing more than 90% of the reflected light source and ensuring the stable processing of highly reflective sheets.

Sheet Edge Anti-vibrating Stable Cutting

Through the powerful algorithm, it is able to adapt to the high frequency vibration of thin plate due to air pressure. The laser head sensitivity is intelligently adjusted, ensuring consistently stable cutting, thereby guaranteeing both cutting quality and efficiency.

Remnants Layout

Taking a photo of remnants with your phone and uploading the image, the system automatically identifies and quickly locates the corners, making the remnant layout a one-click task.  Even waste – can create new value.

5-year Warranty for Bodor Three Core Laser Components

With our perfect integration technology for the self-developed BodorThinker control system, BodorPower laser source, and BodorGenius laser head, we can extend the service warranty for these three core components to five years! The three core components are designed, produced, tested, and delivered in an integrated manner, working perfectly together to make the equipment run more stably and efficiently. At the same time, it greatly reduces the risk of component contamination and failure rate, extends the lifespan, and lowers maintenance costs by avoiding repeated assembly

i series Parameters

	i5	i6	i7
Working Area	1000mm×1500mm	2000mm×1000mm	3048mm×1524mm
Max. Linkage Speed	91m/min	91m/min	91m/min
Table load bearing	250kg	400kg	900kg
Positioning accuracy	±0.05mm/m	±0.05mm/m	±0.05mm/m
Repositioning accuracy	±0.03mm	±0.03mm	±0.03mm
Max. acceleration	1.5 G	1.5 G	1.5 G
Laser cutting technology expert database
Remnant Typesetting
Active anti-collision function
Intelligent anti-shake
