High processing efficiency
Purpose-built small-tube functions and fully automatic loading are intended to increase productive cutting time and reduce repeated operator intervention.
Bodor Q0 Pro | Automatic high-efficiency small-tube laser
Bodor Q0 Pro Small Tube Laser Cutting Machine UK
A compact tube laser developed for fast, repeatable processing of smaller round, square, rectangular and selected shaped tubes. The Q0 Pro combines fully automatic loading, high-speed chuck movement and low tail-material loss, with UK specification, installation, training and long-term support from World Machinery.
Tube range, laser power, collet type, automatic loading, software and achievable output depend on the selected configuration and application. World Machinery currently references 16–60mm automatic loading while Bodor’s current manufacturer page references 20–60mm; confirm the current UK specification in writing.
180 r/min*manufacturer-published maximum chuck-rotation reference
120 m/min*manufacturer-published maximum loading/feed reference
55 mm*manufacturer-published minimum tail-material reference
20 sec*World Machinery stable-loading reference for suitable tube stock
Efficient | material-conscious | automatic
A small-tube production system designed to minimise repeated handling and material loss.
Q0 Pro is intended for manufacturers processing recurring small-tube batches where automatic feeding, predictable clamping and reduced leftover material can deliver a practical productivity advantage. The correct configuration should be chosen around the real tube range, surface-finish expectations, cut features and production volume.
Maximum material utilisation
A published minimum tail-material reference of 55mm is intended to reduce leftover stock and lower material cost across repeat production.
No routine manual loading adjustment
Servo-controlled clamping and the automatic loading system are designed to support stable, hands-free feeding once the production run is prepared.
Fully automatic loading
Load bundled small tube and maintain a more continuous cutting cycle.
The Q0 Pro loading system is designed to select, transfer and clamp suitable round, square and rectangular tubes automatically. World Machinery currently describes stable loading in 20 seconds and long periods of non-stop feeding, subject to tube straightness, size, surface condition, bundle presentation and the selected loader configuration.
Bundle material on the rack
Present suitable stock in the loading arrangement specified for the tube size, shape, length and surface-finish requirement.
Automatic selection and transfer
The loader separates and advances a tube into the clamping system without repeated manual intervention.
Continuous feed for repeat batches
An established production recipe can support longer unattended feed cycles, subject to stock quality and process validation.

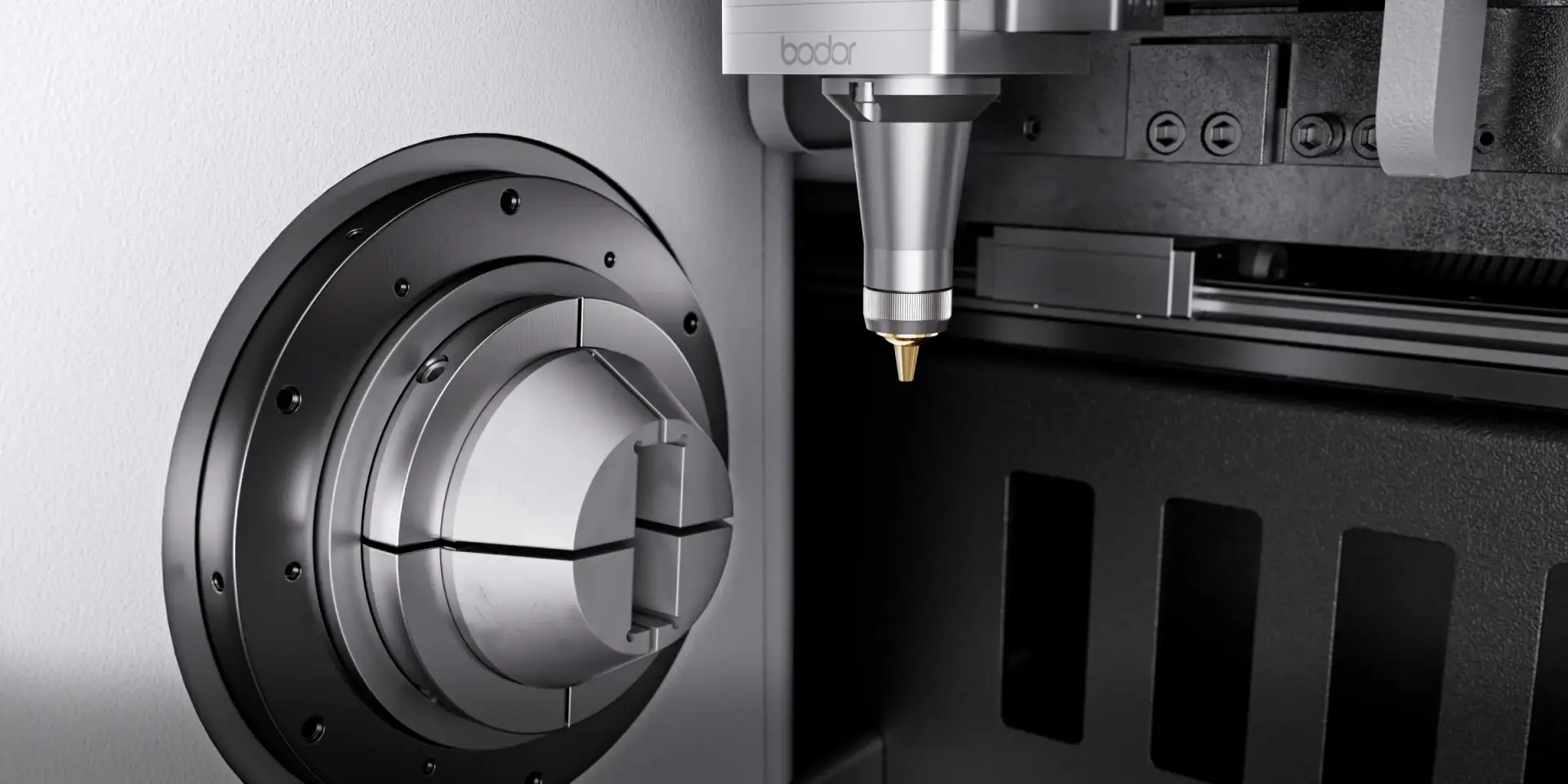

Fixed-diameter pneumatic collets
Clamp small tubes accurately while protecting the visible tube surface.
Q0 Pro uses fixed-diameter chuck collets intended to provide stable positioning without scratching suitable tube surfaces. Bodor describes a five-minute collet-replacement structure and several collet sets for different tube shapes and sizes. Confirm the included collets and supported range in the written UK specification.
Stable pneumatic clamping
High repeat precision supports consistent tube positioning during feeding and rotation.
Surface-conscious handling
The fixed-diameter collet arrangement is designed to reduce marking on suitable finished tube surfaces.
Five-minute replacement reference
Bodor publishes a five-minute collet-change reference; actual changeover depends on the supplied collet set and operator procedure.

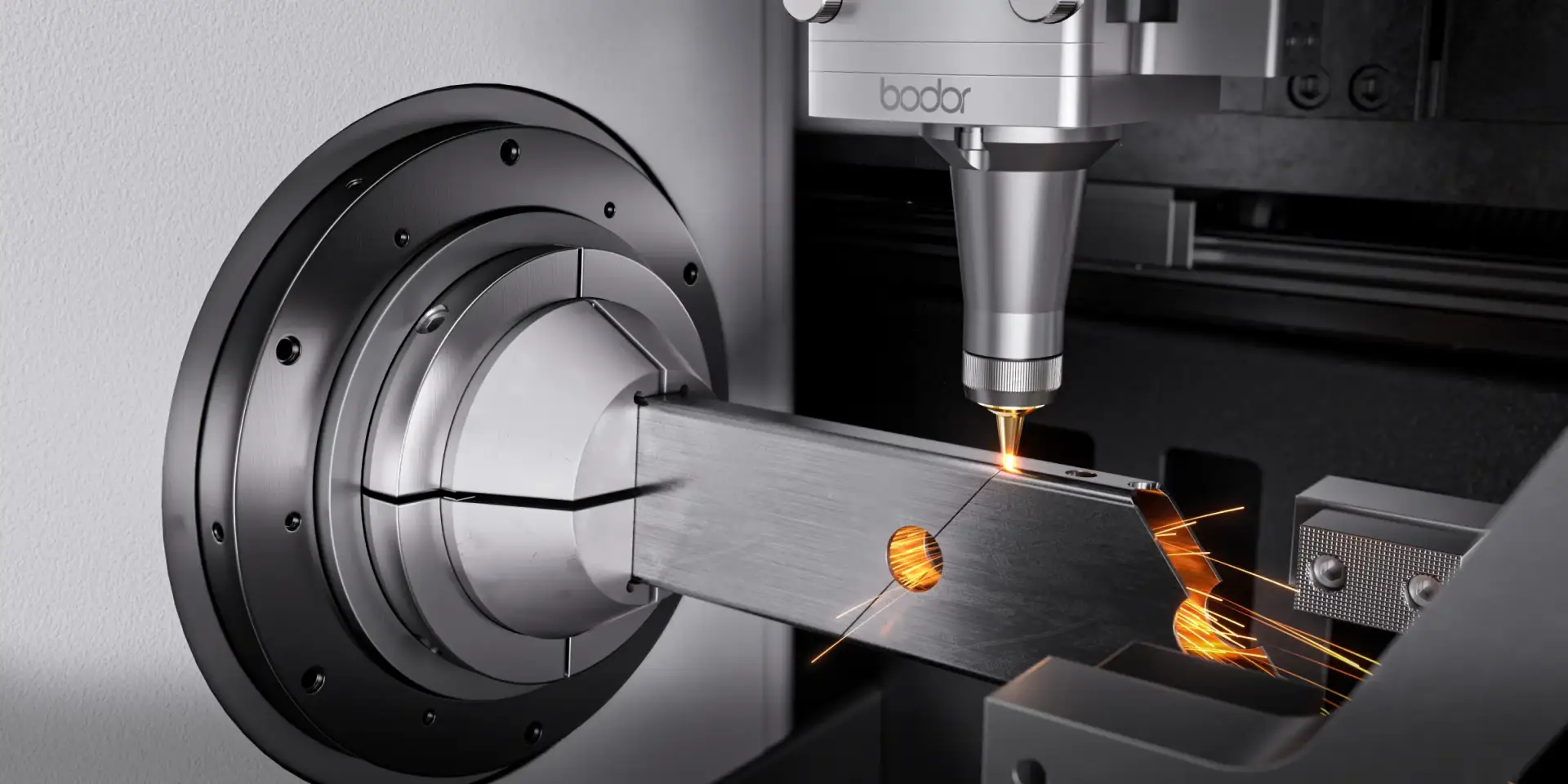

Superior dynamic performance
High chuck speed, rapid feed and 1.5G acceleration for compact tube production.
The Q0 Pro uses servo-controlled clamping rollers that adjust the spacing between roller rows. World Machinery publishes maximum references of 180r/min chuck speed, 120m/min feed speed and 1.5G acceleration. Actual cutting time depends on tube geometry, piercing, features, material, wall thickness and the selected laser source.
180 r/min*published maximum chuck rotation
120 m/min*published maximum feed or loading speed
1.5G*published maximum acceleration reference
These are manufacturer or current-page maximum references, not guaranteed cutting-cycle results for every material or part. Confirm the quoted build and representative application performance before ordering.
Control, clamping and material utilisation
Functions developed around repeat small-tube production.
The benefit of each function depends on the tube range and production mix. World Machinery can review stock shape, size, wall thickness, weld seam, surface finish, feature density, required tail length and loading strategy before specification.

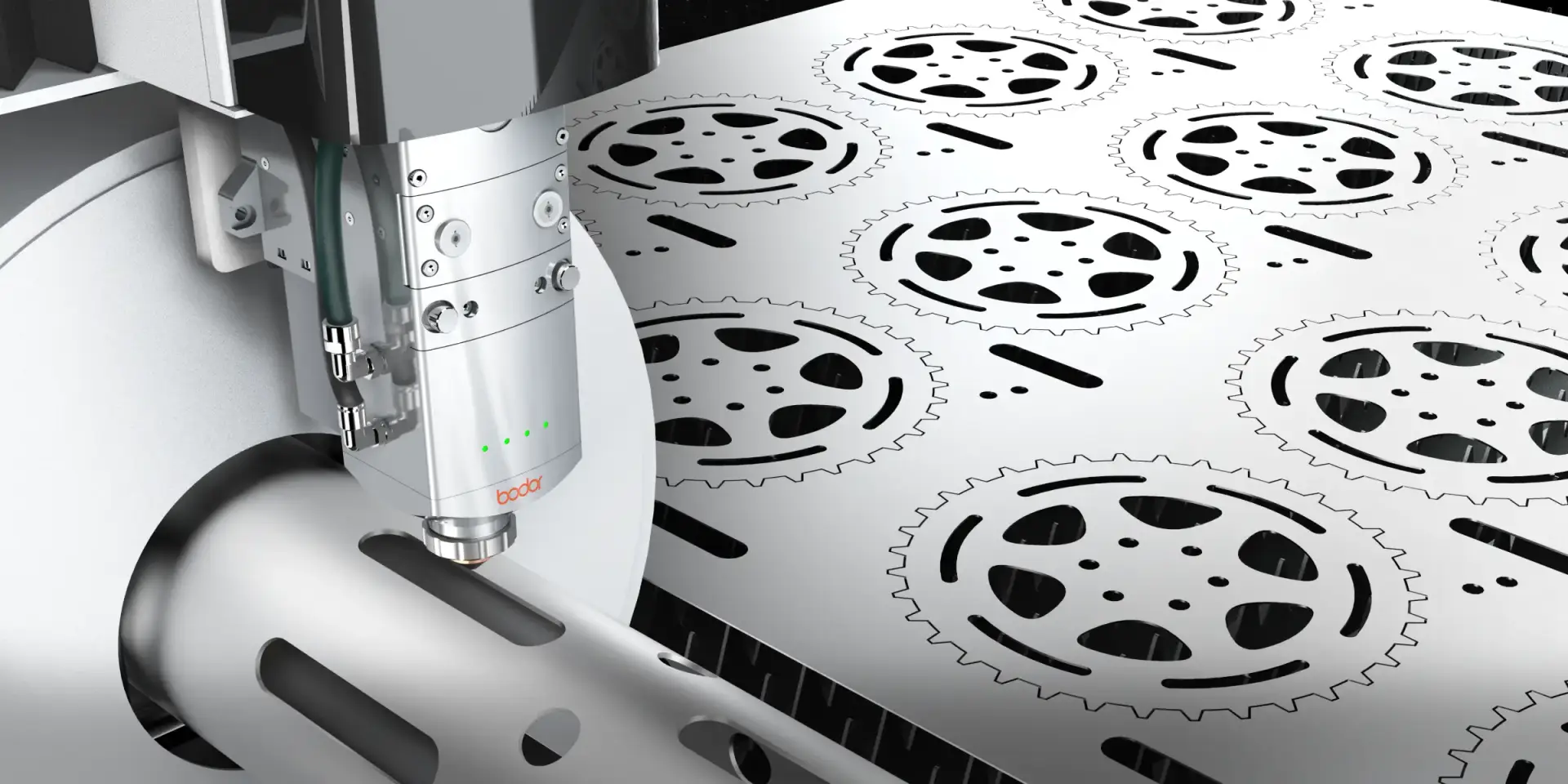

Tube controlBodorThinker tube system
Import compatible 3D drawings using the published IGS workflow and use the tube-control environment to reduce repeated manual programming steps.

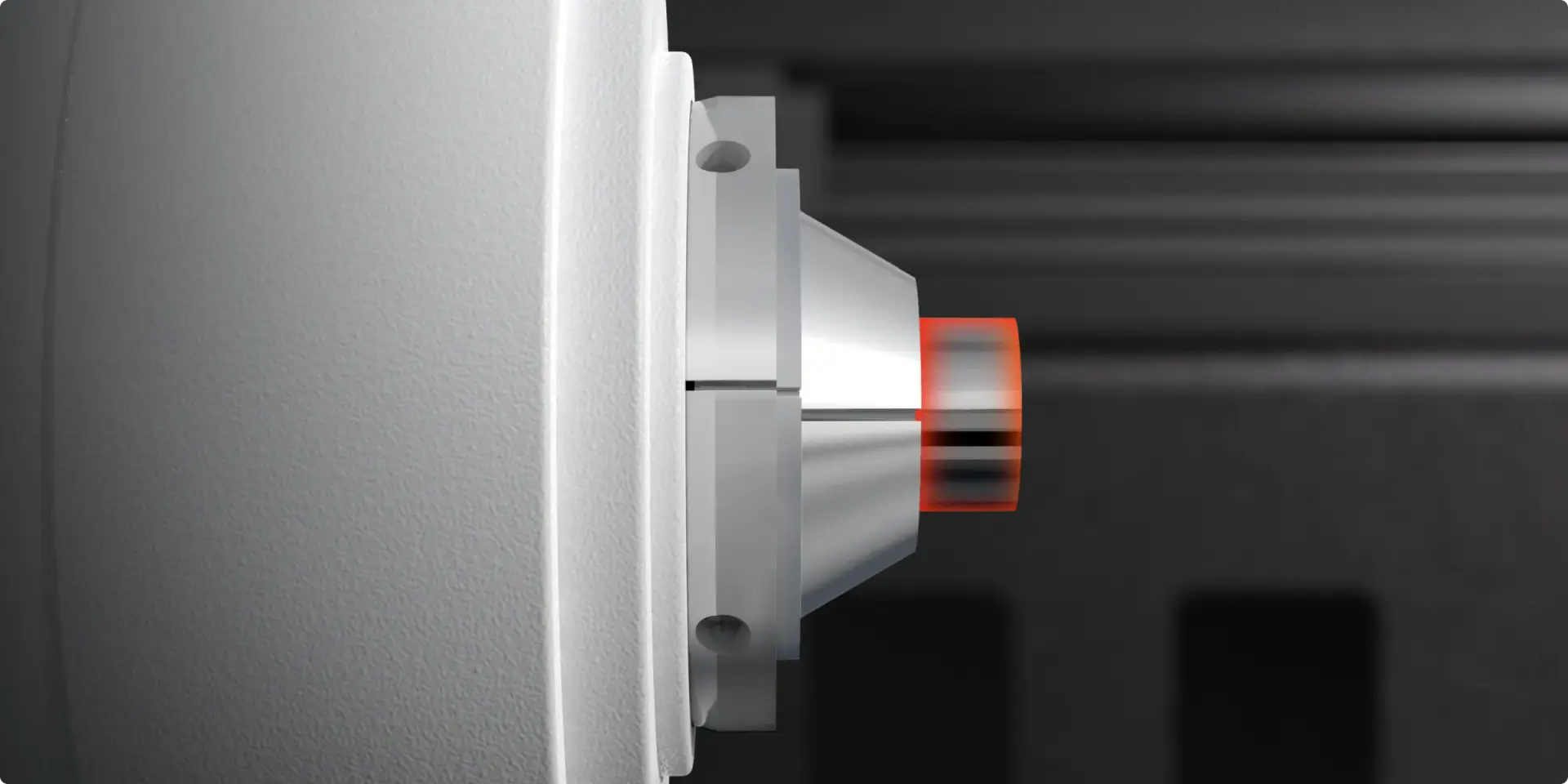

Material saving55mm short tail-material reference
The published short-tail workflow is intended to retain more usable stock and reduce the material left after the final component in the nest.
Chuck systemFixed-diameter collet sets
Different fixed-diameter collets support selected round, square, rectangular, waist-shaped and elliptical tubes, subject to supplied tooling.
Automatic handlingContinuous small-tube loading
The automatic loader supports repeat feeding without routine manual tube placement once the stock and production run are correctly prepared.
Focus controlAuto-focus laser head
The current World Machinery page describes automatic focus adjustment to improve piercing setup, cutting quality and process safety.
Small-tube productionRound, square and rectangular stock
The standard loading scope should be confirmed for the specific tube geometry and collet set; specialist shapes may require alternative tooling or handling.
Q0 Pro planning and technical references
Use the current graphics as a starting point, then confirm the exact UK configuration.
The original World Machinery page provides machine, capability and technical-data visuals. The redesign retains them while directing customers to obtain a current written specification for tube range, stock length, laser power, automatic loading, collet sets and included software.
Published technical parameters
Review the existing technical graphic alongside a current World Machinery quotation. Product data, loading range and available power can change by market and configuration.
Automatic small-tube package
The Q0 Pro combines automatic loading, servo clamping and a small-tube-focused production workflow. Confirm the loader, rack and stock-length arrangement.
Stable clamping and quick collet changes
The fixed-diameter chuck concept supports repeat positioning and a short changeover between suitable collet sets.
Small-tube shapes and surface condition
Round, square, rectangular and selected shaped tubes should be reviewed against the exact collet, loader and surface-marking requirement.
Specify around real small-tube production
Choose the Q0 Pro configuration from the stock range, part features and required output.
A reliable proposal starts with representative drawings and stock information. World Machinery can then confirm the tube range, laser source, loader, collets, stock length, software, extraction and factory requirements.
Tube shapes and dimensions
List round, square, rectangular, waist-shaped, elliptical and any specialist profiles together with the minimum and maximum dimensions.
Wall thickness and material
Confirm mild steel, stainless steel, aluminium, brass, copper or coated stock together with normal and maximum wall thickness.
Stock length, finish and handling
Provide stock length, bundle presentation, surface-finish requirements, acceptable marking and the loading method used in production.
Features, volume and site
Share holes, slots, mitres, part lengths, batch sizes, target output, extraction, services and available floor space.
World Machinery UK support
From small-tube trials and loader selection to installation, training and long-term service.
World Machinery can support application review, sample cutting, automatic-loading selection, site preparation, installation, commissioning, operator training, planned maintenance and qualifying finance options for a complete Q0 Pro project.
Application and drawing review
Review tube dimensions, wall thickness, surface finish, features, batch sizes and required tail-material performance.
Representative cutting trials
Test actual tube stock and drawings to assess loading, clamping, cut quality, piercing and material utilisation.
Installation and training
Coordinate delivery, power, gas, extraction, loader setup, commissioning and practical operator handover.
Service and finance
Protect uptime with UK support and discuss finance routes for qualifying machinery projects.
Q0 Pro questions
What UK manufacturers usually ask before specifying a Bodor Q0 Pro.
Final answers depend on the quoted tube range, laser source, loader, collet sets, software and stock length. World Machinery can provide a current written configuration.
What is the Bodor Q0 Pro designed for?
The Q0 Pro is a small-tube laser cutting machine focused on automatic loading, high-speed rotation and low tail-material loss. It is suited to repeat production of suitable round, square, rectangular and selected shaped tubes.
What loading range does the Q0 Pro support?
The current World Machinery page references 16–60mm automatic loading, while Bodor’s current manufacturer page references standard automatic loading for round, square and rectangular tubes from 20mm to 60mm. The exact UK loader and tube range must therefore be confirmed in writing.
How fast are the chuck and feed system?
The current product information publishes maximum references of 180r/min chuck rotation, 120m/min feed or loading speed and 1.5G acceleration. Actual cutting-cycle performance depends on material, wall thickness, part geometry, piercing and configuration.
How short can the final tail material be?
Bodor publishes a minimum tail-material reference of 55mm. The result depends on tube geometry, clamping, nest layout, part length and the selected process, so representative stock should be reviewed.
Which tube shapes can the Q0 Pro process?
The current product information identifies round, square and rectangular tubes, while fixed-diameter collet options are also shown for waist-shaped and elliptical profiles. The included collet sets and dimensional range should be confirmed before order.
How quickly can the chuck collets be changed?
Bodor publishes a five-minute replacement reference for the fixed-diameter collets. Actual changeover depends on the supplied tooling, operator procedure and production setup.
Can the Q0 Pro import 3D tube drawings?
The current World Machinery page describes importing compatible 3D drawings through an IGS workflow in the BodorThinker tube system. Software versions, file preparation and supported geometry should be confirmed during application review.
What UK support does World Machinery provide?
World Machinery can support application review, cutting trials, site preparation, installation, commissioning, operator training and ongoing UK service support. Finance options can also be discussed for eligible businesses.
Plan your Q0 Pro project
Request a small-tube trial, current specification or live demonstration.
Send your tube shapes, dimensions, wall thickness, stock length, surface-finish requirements and representative drawings. The World Machinery team can review a suitable Q0 Pro configuration and prepare current written figures.
