Metal Sheet Grooving

The Vertical V-Grooving machine excels at accurately grooving metal sheets, as it aids in controlling the radius of the bending angle in the subsequent bending process. Additionally, the frame steel plate undergoes processing by a large gantry center with high precision. Furthermore, the frame is crafted using automatic welding equipment, ensuring uniform welding seams and maintaining the high rigidity of the entire frame.

Movable Touch Screen (National Patent)

The operating platform is specially designed as a big touch screen display. Which subsequently can follow the operator’s movements for quick operation.

Multiple Grooving Modes

A variety of automatic grooving programs such as one-way grooving, reciprocating grooving, and fixed-point grooving can be implemented. The tool holder, driven by a servo motor, ensures precise blade feeding accuracy of ±0.01mm.

GHBM 5U NC System

Simple operation and low learning cost. Support multi-slot grooving programming and support the programming call function.

Processing Effect Display

The workpiece features a small arc radius on its edge, ensuring there are no bending creases on the product’s surface. This characteristic makes it particularly suitable for workpieces with high requirements for surface smoothness and beauty.

Powerful Features Perfect Details

The 15.6-inch LCD capacitive screen offers precise touch control, providing customers with a valuable interactive programming experience. Furthermore, efficient control algorithms equip the machine, optimizing its working cycle and enabling it to produce more workpieces in the same time.

Imported Blades(Standard)

The cutter block is made of high-quality steel after quenching treatment to obtain high strength and high wear resistance.

Front Support Device(Standard)

It can slide left and right along the linear guide, and can be folded to save space.

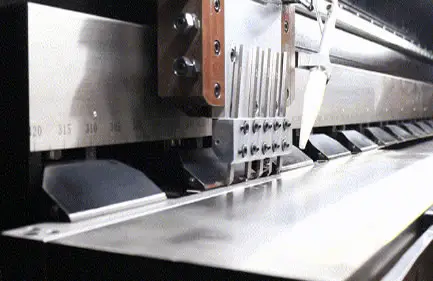

LED work area lighting(Standard)

LED lighting equipment can illuminate the work area with low energy consumption and high brightness.

Accurate Back Support Device(Standard)

The plate is fed into the machine by the back clamp on the back support device. Additionally, it maintain the feeding tolerance at ≤±0.03mm. Furthermore, it strengthen the plane of the pallet to make it more wear-resistant.

Core Components

Servo Motor

Closed-loop control achieves higher precision control. Faster speed increases the overall working speed of the machine.

HIWIN Ball Screw＆Linear Guide From TAIWAN,CHINA

Adopt a complete set of Bosch Rexroth solenoid valves and sealing accessories imported from Germany. Also, ensure the stability of the equipment under long-term high-load working conditions.

Zhuolan Planetary Reducer

It is a famous brand in China. High precision, high rigidit compact structure. Suitable for deceleration transmission of servo motor while its also durable
