Features
Handheld Fiber Laser Welding-EHW-F2000 2.0kw
- Raycus Source
- Welding Head and System
- Dual Type Water Chiller
- Automatic Wire Feeder
- Protective Goggles
Machine Detail
Laser Source
Raycus fiber laser, designed for industrial and scientific research applications, features high pump conversion efficiency, low power consumption, and excellent beam quality. It is compact and ready to use. Users can utilize it as a stand-alone unit or easily insert it into their apparatus.
Welding Head
Wobble（Magnetic levitation）Welding head Magnetically-levitated motor
- The process that the conventional head can not complete, the dithering head only needs to use about 70% of the power, so that the cost of the laser can be saved;
- Wobble welding back and forth through the galvanometer motor, so that the bubbles with large impurities can reduce bubbles, frying, splashing, etc.
- In the case of irregular gaps, the requirements for the fixture can be reduced. The conventional oscillating head welding gap is generally 0.2 mm, and light exceeding this width directly passes through. The oscillating head can weld gaps up to 0.5mm in width, whereas the conventional welding head can only weld up to 0.2mm. There is no galvanometer motor in the welding head, so there is no swing. The welding effect is poor, limiting the welding process.
- high efficiency Dual temperature control water cooling helps long time lifespan laser source and stable welding performance
- Build-in design helps to save transportation cost and site space
- Large Size water inlet, very easy water fill operation
- Casters design with brakes cabinet, portable for easy movement

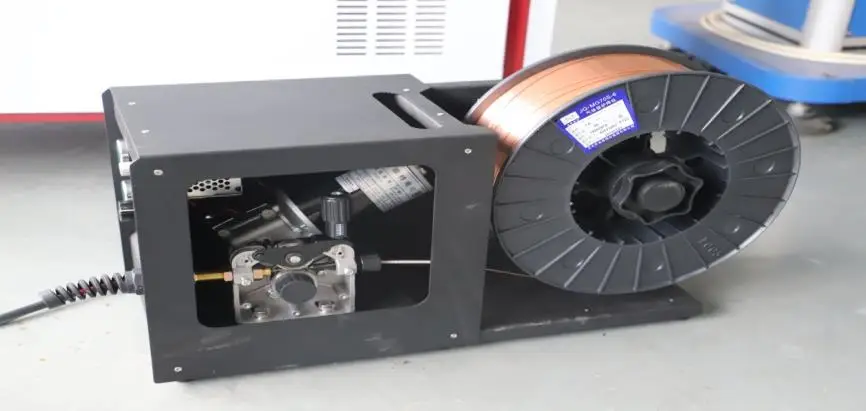

Automatic Wire feeder
Machine Config
