High-speed tube cutting
Fast loading and chuck rotation are intended to shorten non-cutting time and support high-throughput tube production.
Bodor T Series | Professional high-speed tube laser
Bodor T Series Tube Laser Cutting Machine UK
A professional tube laser platform developed for fast loading, rapid chuck movement and intelligent parameter selection across round, square, rectangular and special profiles. World Machinery supports UK manufacturers with application review, demonstrations, installation, training and long-term service.
Tube range, laser power, loading, bevel processing, seam identification and achievable output depend on the selected T2 or T3 configuration, material and application. Confirm all details in a current written World Machinery quotation.
160 m/min*manufacturer-published maximum loading-speed reference
175 r/min*current manufacturer maximum chuck-rotation reference
0.26 sec*manufacturer rectangular-tube centering example
UK supportspecification, installation, training and service
Fast | precise | adaptable
A high-performance tube laser designed around uninterrupted production.
The T Series combines high-speed motion with rapid centering and intelligent process adaptation. Its role is to reduce avoidable setup and handling time while maintaining stable support for a wide mix of standard and custom tube profiles.
Power matched to the application
Laser power should be selected from the real tube material, wall thickness, profile shape, feature mix and required edge quality.
Production efficiency
Bodor publishes a 20% processing-efficiency comparison against an industry reference; actual gains depend on the complete job and line setup.

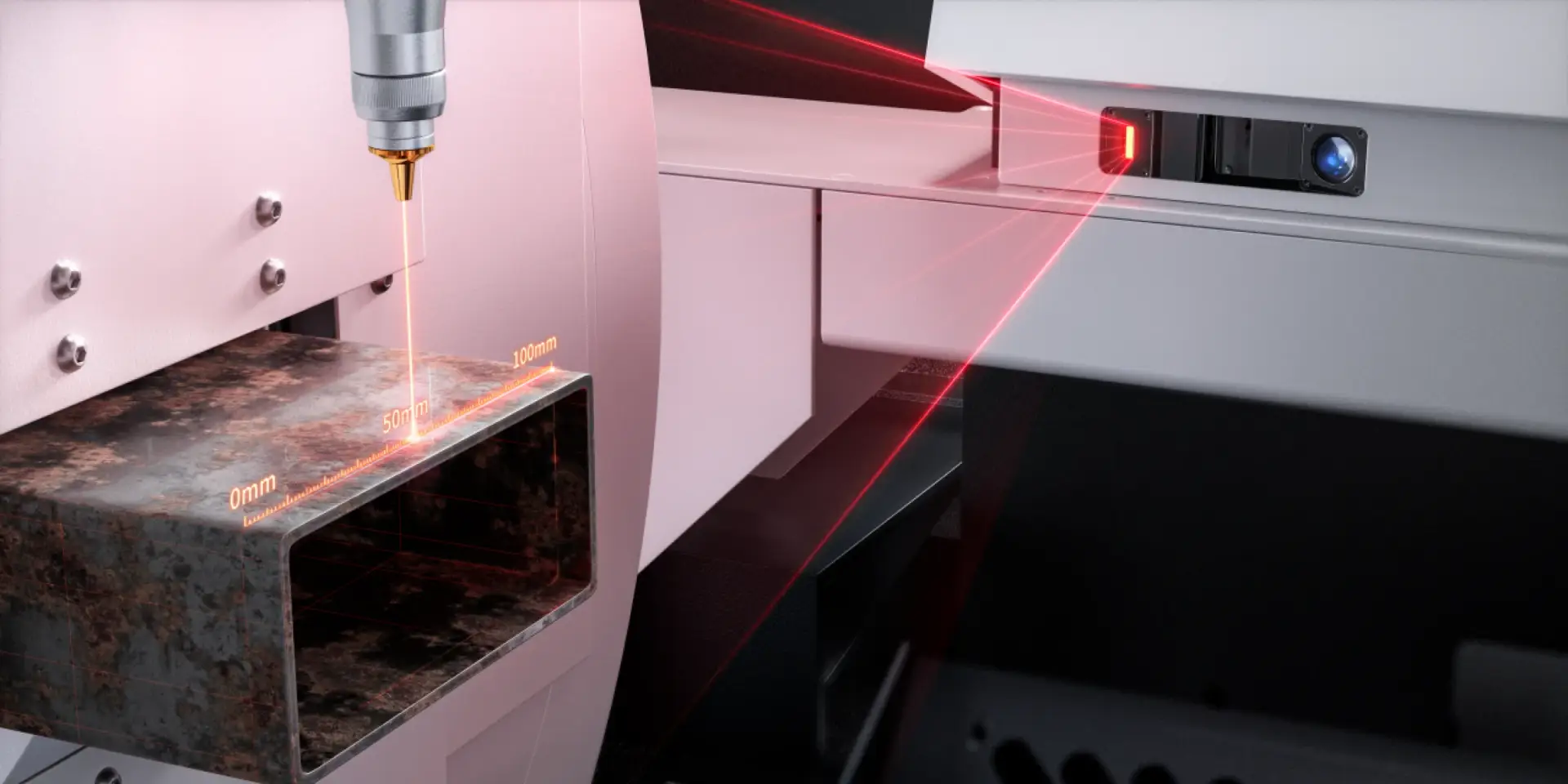

Rapid tube centering
Centre rectangular tubes in a fraction of the time required by traditional capacitive methods.
Bodor publishes a 0.26-second centering example for rectangular tube, compared with 5.02 seconds for a traditional capacitive method. The technique is designed to be less affected by environmental conditions, lighting, temperature and tube condition.
Rapid detection
The machine identifies tube position quickly so cutting can begin without a long centering delay.
Stable across tube conditions
The published centering concept is intended to reduce sensitivity to external conditions and tube variation.
Validate on representative stock
Real tube straightness, weld seams, surface condition and tolerances should be assessed during application trials.

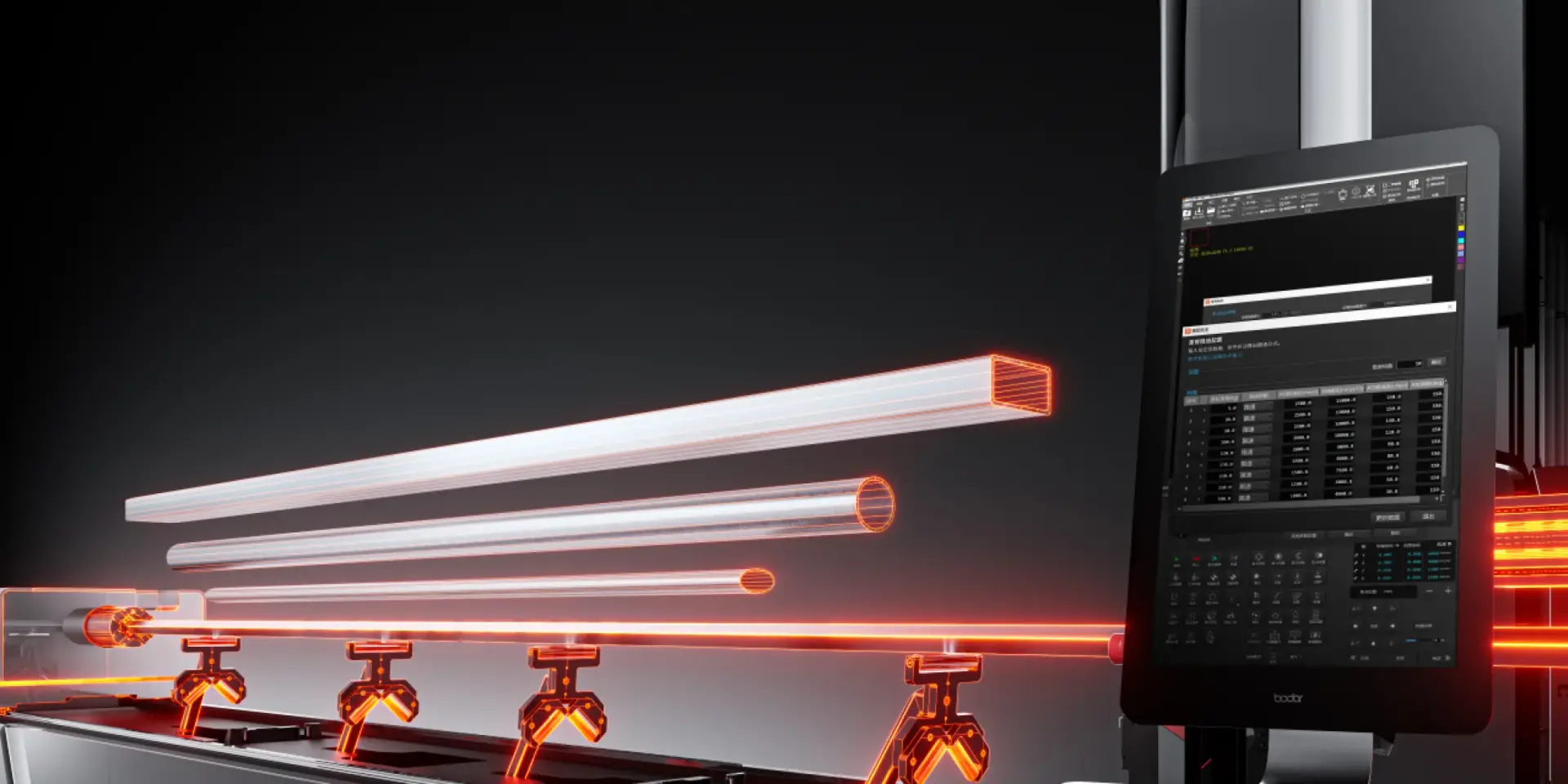

Intelligent parameter adaptation
Match speed, chuck rotation and clamping force to the tube automatically.
The T Series control system uses Bodor process data to select and match settings according to the tube type. This can reduce repeated manual intervention, but the final parameter database and process window should be verified against the materials and profiles used in production.
Loading-speed adaptation
Material transfer settings can be matched to the tube profile and production sequence.
Chuck-rotation adaptation
Rotational speed is coordinated with the tube and programmed feature path.
Clamping-force adaptation
Clamping is adjusted to support secure handling without unnecessary manual setup.
Ultra-fast tube movement
High loading speed and chuck rotation reduce time between programmed features.
Bodor currently publishes a maximum loading speed of 160m/min and a maximum chuck-rotation reference of 175r/min. The existing World Machinery page shows 160r/min. Model, market and configuration should therefore be confirmed in the current written UK specification.
160 m/min*current manufacturer maximum loading-speed reference
175 r/min*current manufacturer maximum chuck-rotation reference
20%*manufacturer efficiency comparison, not a guaranteed customer result
The current World Machinery and Bodor pages contain different power and chuck-speed references. Confirm the exact T2 or T3 power, speed, tube range and included functions before ordering.
Tube handling and optional functions
Support, unload and automate a wider range of tube profiles.
The value of each feature depends on the stock range and production mix. World Machinery can review tube shape, diameter or side length, wall thickness, stock length, weld seam, bevel requirements and loading strategy before the machine is specified.

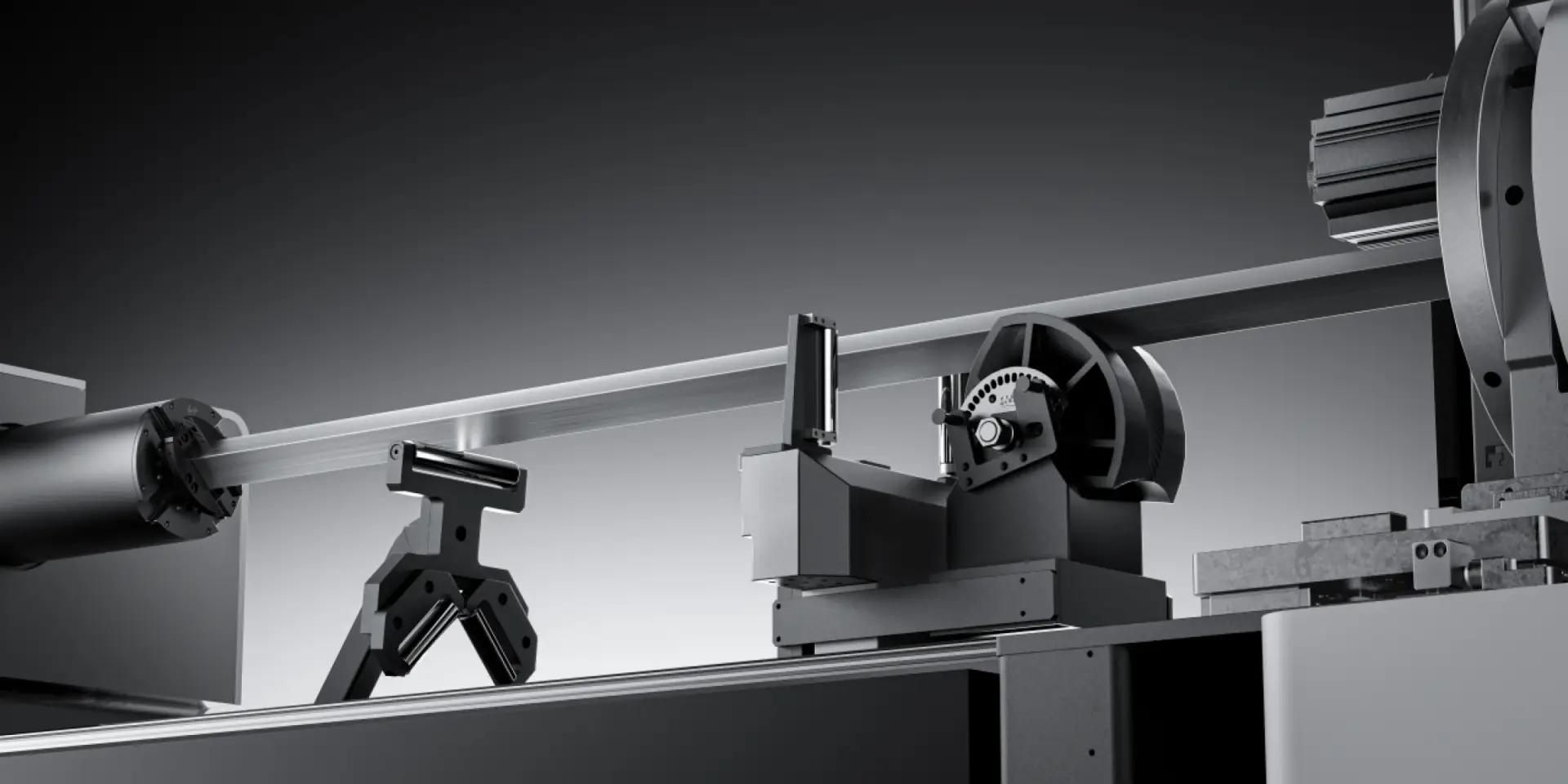

Workpiece supportComposite roller support
Follow-up rollers, intelligent loading centering and a bionic U-shaped roller support the workpiece during high-speed rotation.
Part handlingServo-flipping unloading
Adaptive unloading is designed to reduce workpiece movement, protect cutting accuracy and separate finished parts from remnants.

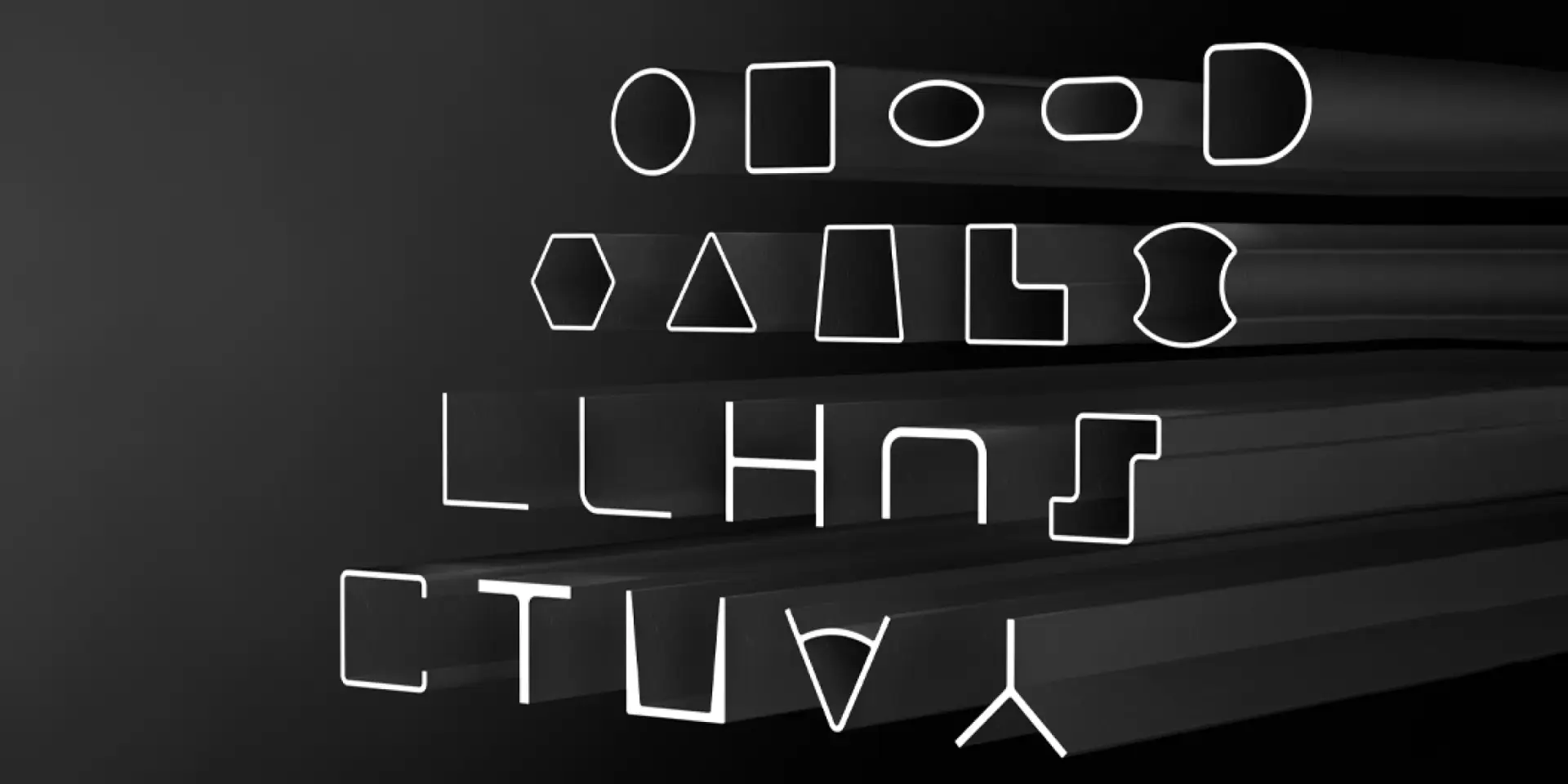

Profile flexibilityRound, square and special tubes
The T Series is presented for round, square, rectangular, flat-sided oval, elliptical and other suitable custom profiles.
Automation optionT-Trans or T-Loader
Optional automatic or auxiliary loading can reduce repetitive handling and support a more continuous production cell.
Bevel optionUp to ±45° bevel cutting
The optional bevel-cutting configuration can prepare selected tube features for assembly and welding, subject to geometry and material limits.
Vision optionWeld seam identification
A camera can detect internal weld-seam position so programmed features can avoid the seam where required.
T2 and T3 planning
Use the existing model graphics as a starting point, then confirm the current UK specification.
The original World Machinery page provides separate T2 and T3 technical graphics. Because current model data can change, the redesign retains those images while directing customers to obtain a written specification for working diameter, stock length, power, chuck performance and automation.
Bodor T2
Professional tube-laser configuration for high-speed production. Confirm the current tube range, stock length, laser power and compatible loading systems.
Bodor T3
Larger or alternative production configuration shown on the existing page. Confirm current dimensions, performance and option availability in writing.
Stable support at high rotational speed
The composite roller system is intended to maintain tube support during fast chuck movement and rotation.
A broad tube and profile range
Round, square, rectangular and selected special profiles can be reviewed against the chosen chuck and loading configuration.
Specify around real tube production
Choose the T Series configuration from your stock, features, automation and target output.
A reliable proposal starts with representative drawings and stock information. World Machinery can then confirm the model, laser source, profile range, chuck arrangement, bevel option, weld-seam camera, loading system and factory requirements.
Tube shapes and dimensions
List round, square, rectangular, oval, elliptical and special profiles together with minimum and maximum dimensions.
Length, wall thickness and weight
Confirm stock length, finished part length, normal and maximum wall thickness and the heaviest regular workpiece.
Cut features and optional processes
Share holes, slots, notches, mitres, bevels, weld-seam requirements, marking and downstream welding or assembly needs.
Loading, unloading and site
Plan T-Trans or T-Loader use, finished-part handling, extraction, services, access, floor space and maintenance clearances.
World Machinery UK support
From tube trials and model selection to installation, training and long-term service.
A high-speed tube laser is a complete production project. World Machinery can support application review, sample cutting, automation selection, site preparation, installation, commissioning, operator training, planned maintenance and qualifying finance options.
Application and drawing review
Review tube profiles, dimensions, features, weld seams, batch sizes and target cycle times before specification.
Representative cutting trials
Test actual material and drawings to assess centering, cut quality, bevels, seam avoidance and handling.
Installation and training
Coordinate delivery, power, gas, extraction, automation, commissioning and practical operator handover.
Service and finance
Protect uptime with UK support and discuss finance routes for qualifying machinery projects.
T Series questions
What UK manufacturers usually ask before specifying a Bodor T Series.
Final answers depend on the selected T2 or T3 build, tube range, power, loading, bevel equipment and software. World Machinery can provide a current written configuration.
What is the Bodor T Series designed for?
The T Series is a professional tube laser focused on high-speed movement, rapid centering and intelligent parameter adaptation. It is intended for repeat production across round, square, rectangular and selected special profiles.
How fast is T Series tube centering?
Bodor publishes a 0.26-second centering example for rectangular tube and compares it with 5.02 seconds for traditional capacitive centering. Actual performance depends on tube profile, condition, material and configuration.
What loading and rotation speeds are published?
The current Bodor page publishes a maximum loading-speed reference of 160m/min and maximum chuck rotation of 175r/min. The existing World Machinery page shows 160r/min, so the final UK specification should be confirmed in writing.
Which tube shapes can the T Series process?
The product information identifies round, square, rectangular, flat-sided oval, elliptical and other suitable custom profiles. The exact dimensional range depends on the selected T2 or T3 configuration and chuck system.
Can the T Series cut bevels?
An optional bevel-cutting configuration is described for angles up to plus or minus 45 degrees. Suitability depends on tube geometry, material, wall thickness, feature position and the selected head and software.
How does weld seam identification work?
The optional camera detects the internal weld seam position so programmed cut features can avoid it. Representative tube stock should be tested because seam appearance and tube condition affect detection.
What automatic loading is available?
The T Series can be paired with the T-Trans automatic loading system or the T-Loader auxiliary loading device. The correct option depends on tube dimensions, stock length, weight, batch size and factory layout.
What UK support does World Machinery provide?
World Machinery can support application review, cutting trials, site preparation, installation, commissioning, operator training and ongoing UK service support. Finance options can also be discussed for eligible businesses.
Plan your T Series project
Request a tube trial, current T2 or T3 specification, or live demonstration.
Send your tube profiles, dimensions, wall thickness, stock length, maximum weight and representative drawings. The World Machinery team can review a suitable T Series configuration and prepare current written figures.
