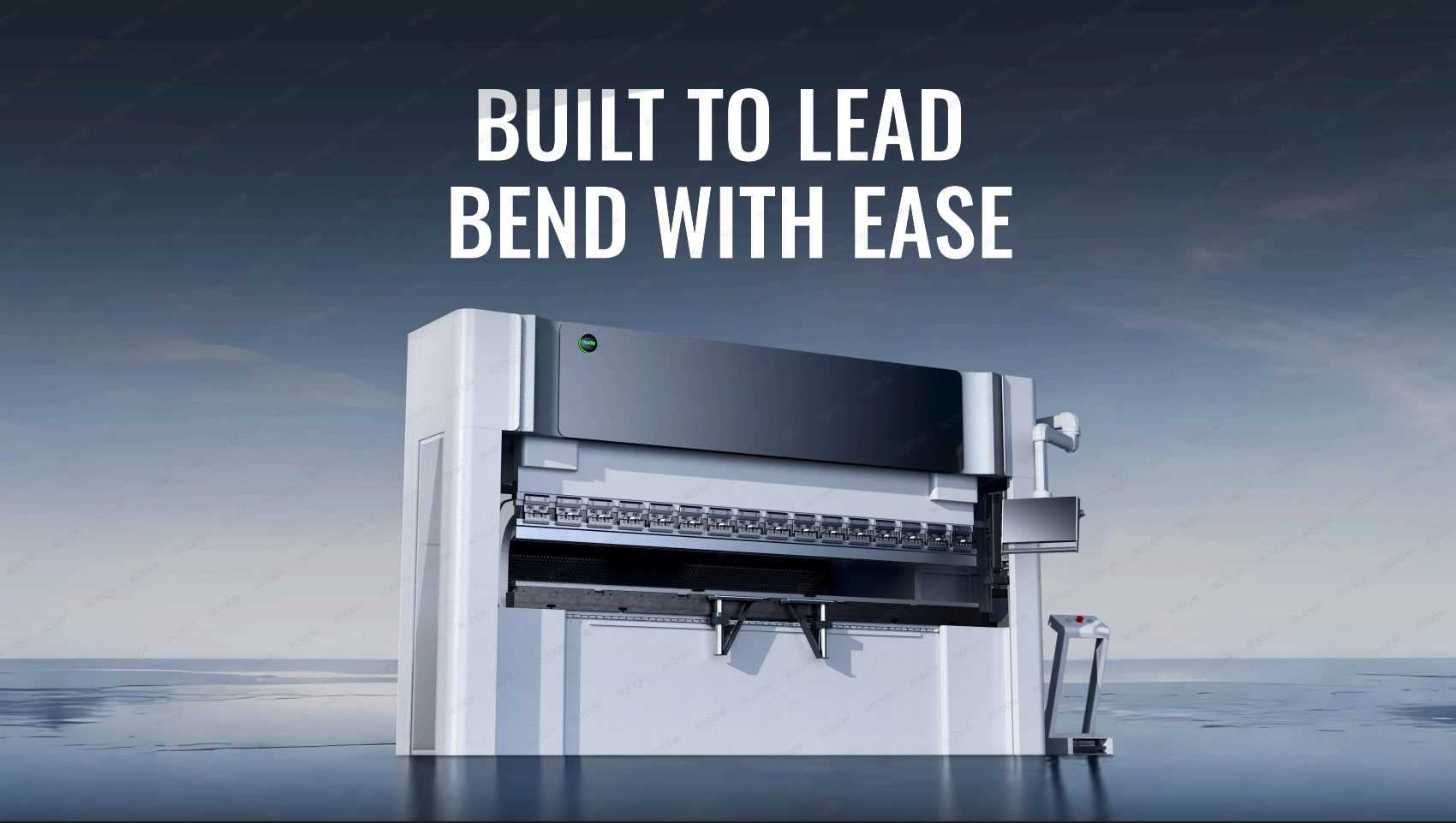

Built to Lead Bend With Ease
Engineered to Global Standards Next-Level Bending Experience
Bodor aligns every dimension of the machine with international ability, safety, and service, and delivers a next-level experience from product to lifecycle support.
After-Sales Services
Safety

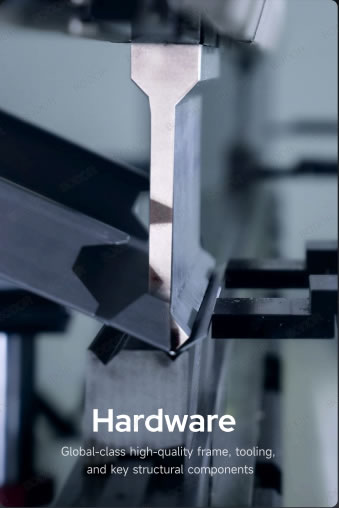

Hardware

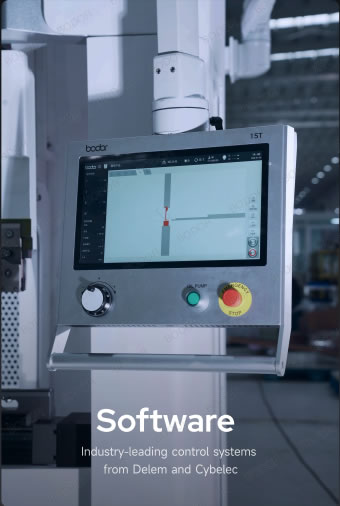

Software

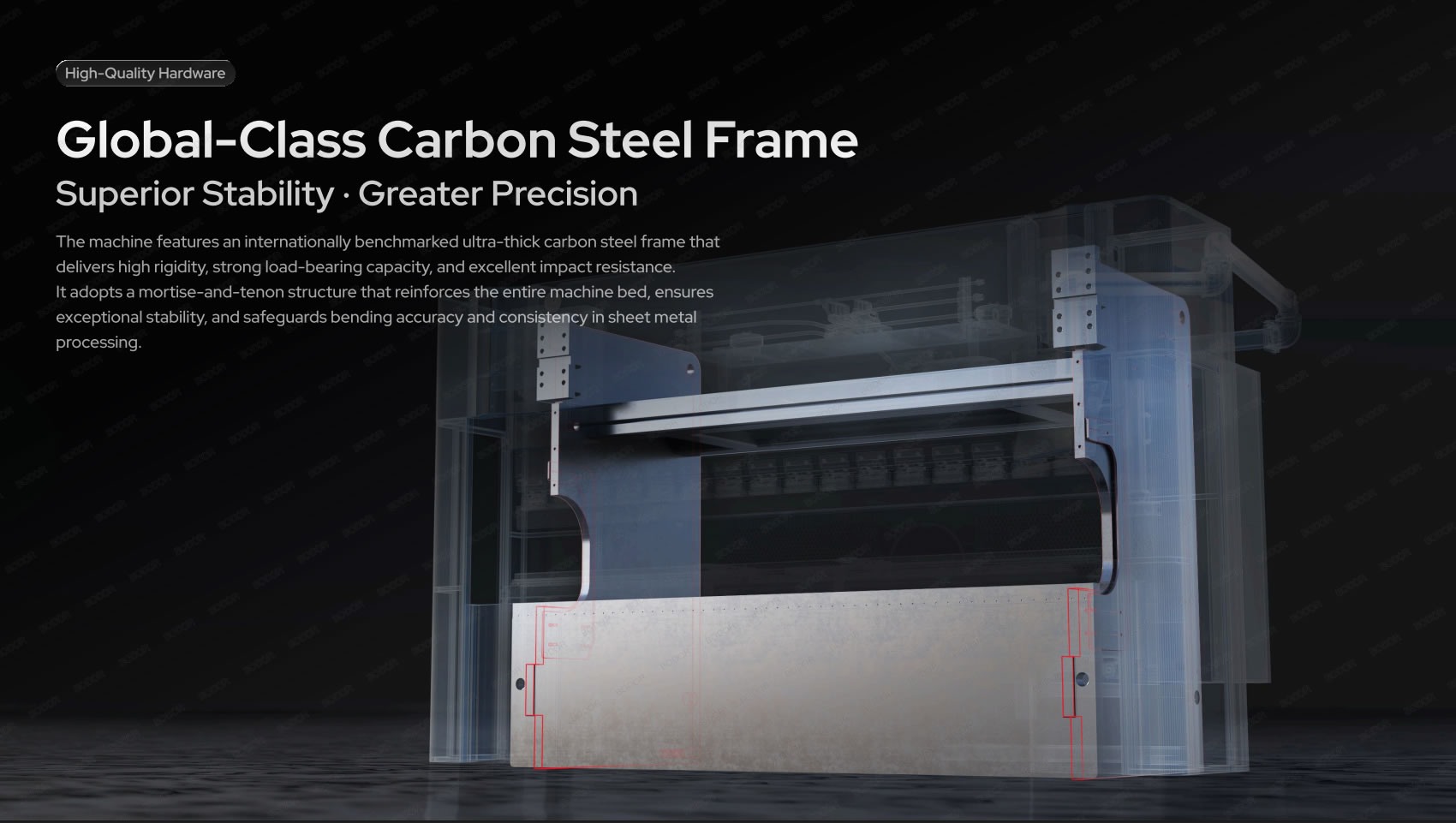

Global-Class Carbon Steel Frame Superior Stability · Greater Precision The machine features an internationally benchmarked ultra-thick carbon steel frame that delivers high rigidity, strong load-bearing capacity, and excellent impact resistance. It adopts a mortise-and-tenon structure that reinforces the entire machine bed, ensures exceptional stability, and safeguards bending accuracy and c

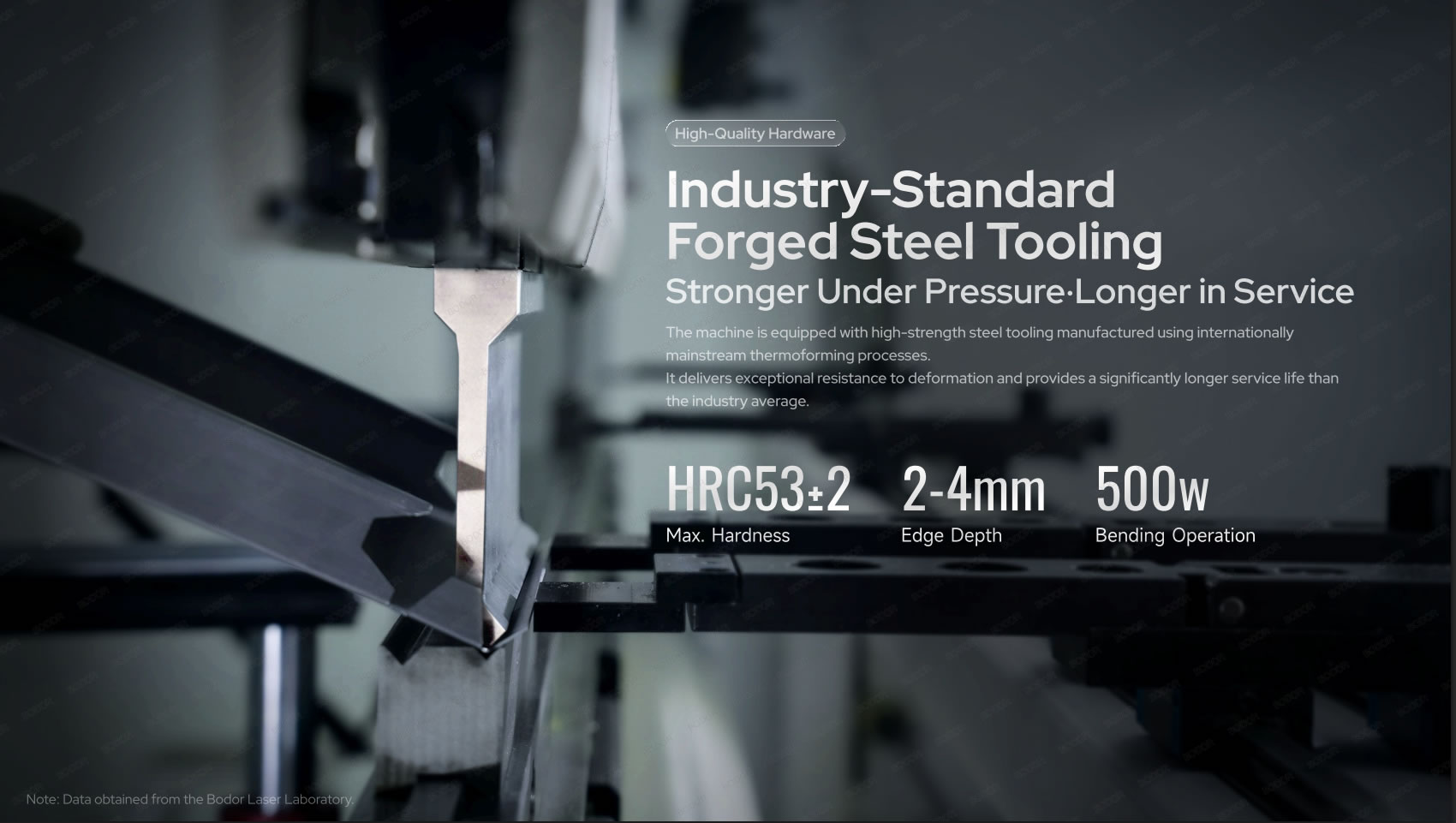

Industry-Standard Forged Steel Tooling Stronger Under Pressure·Longer in Service The machine is equipped with high-strength steel tooling manufactured using internationally mainstream thermoforming processes.

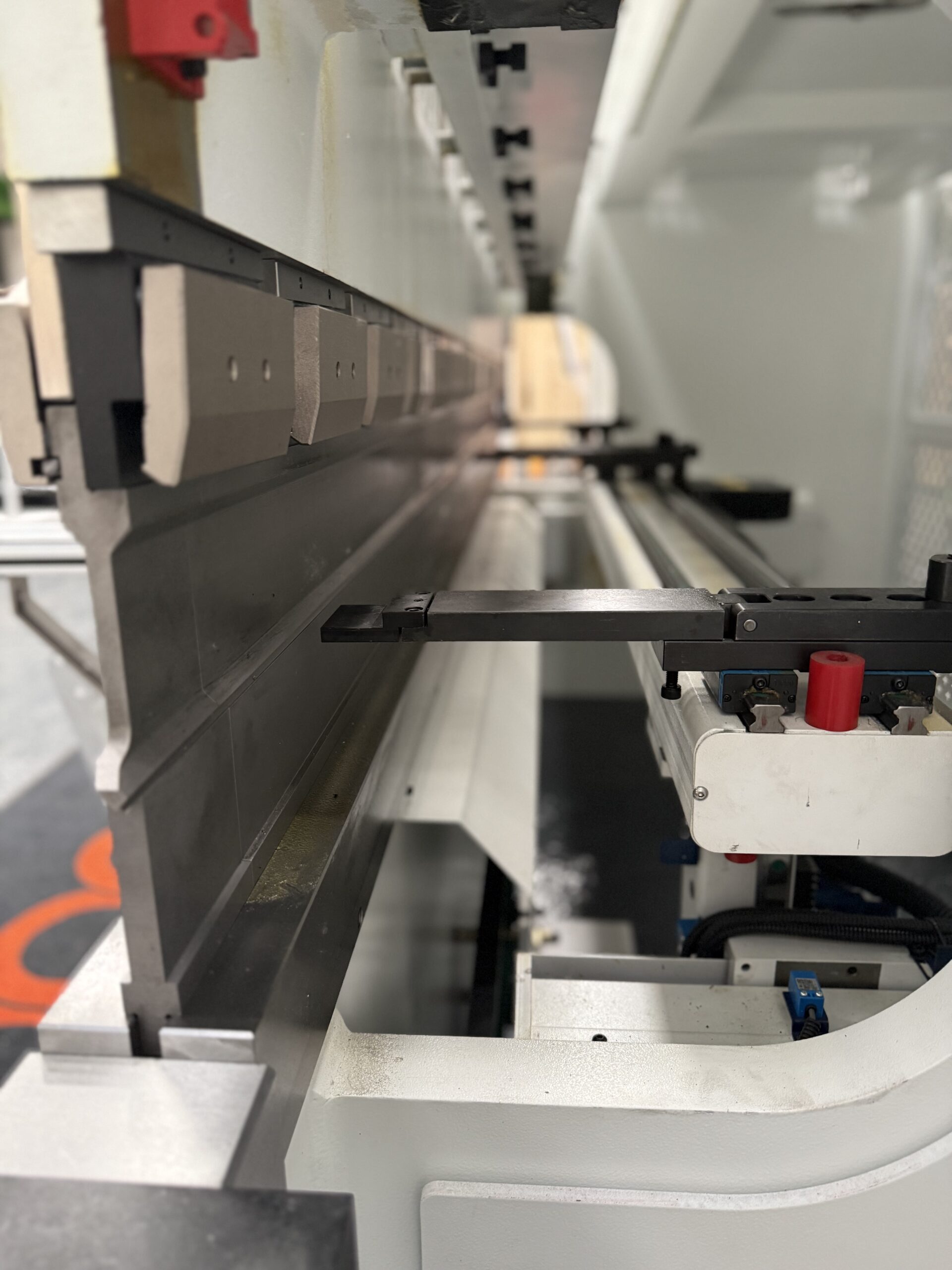

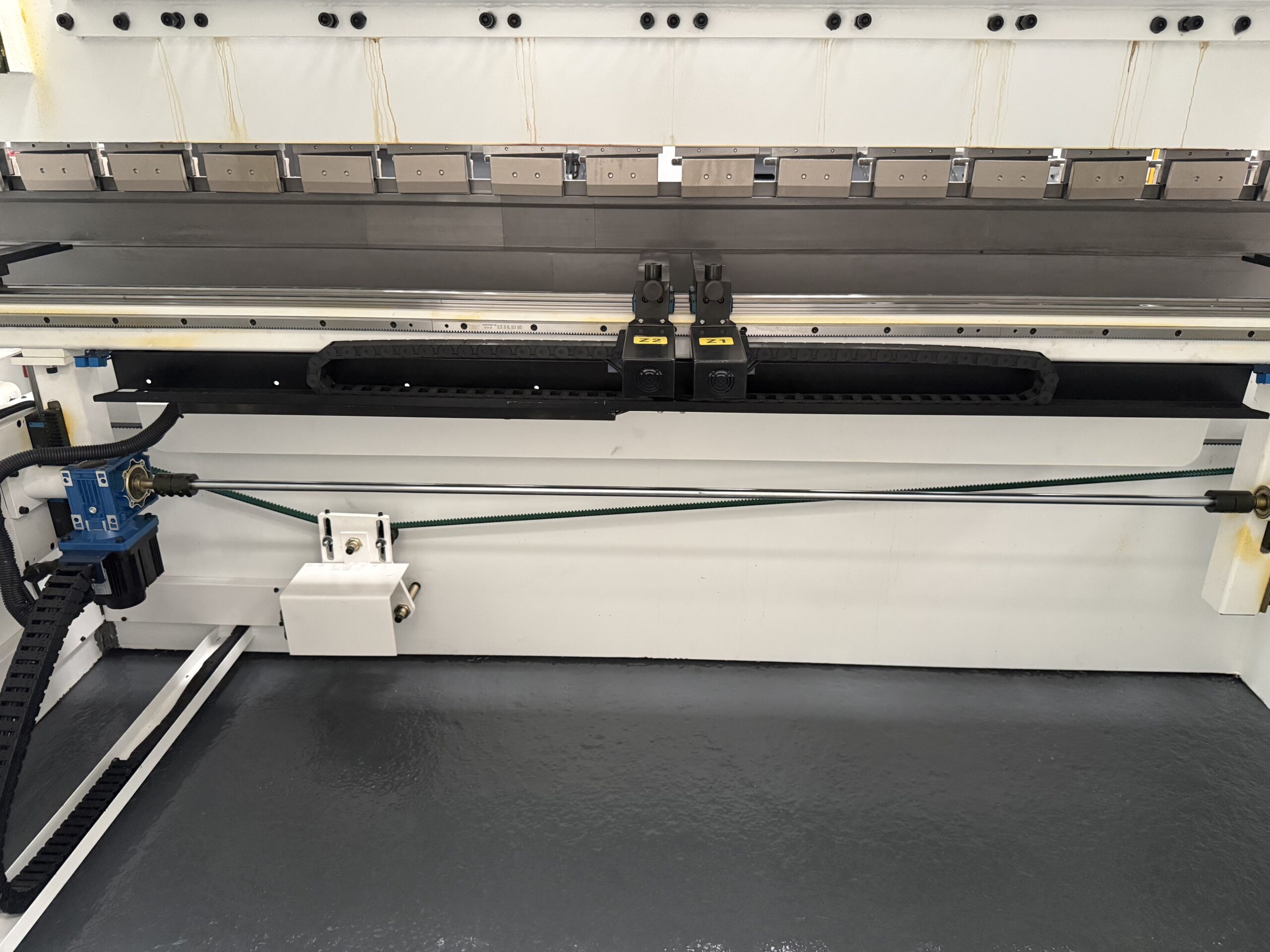

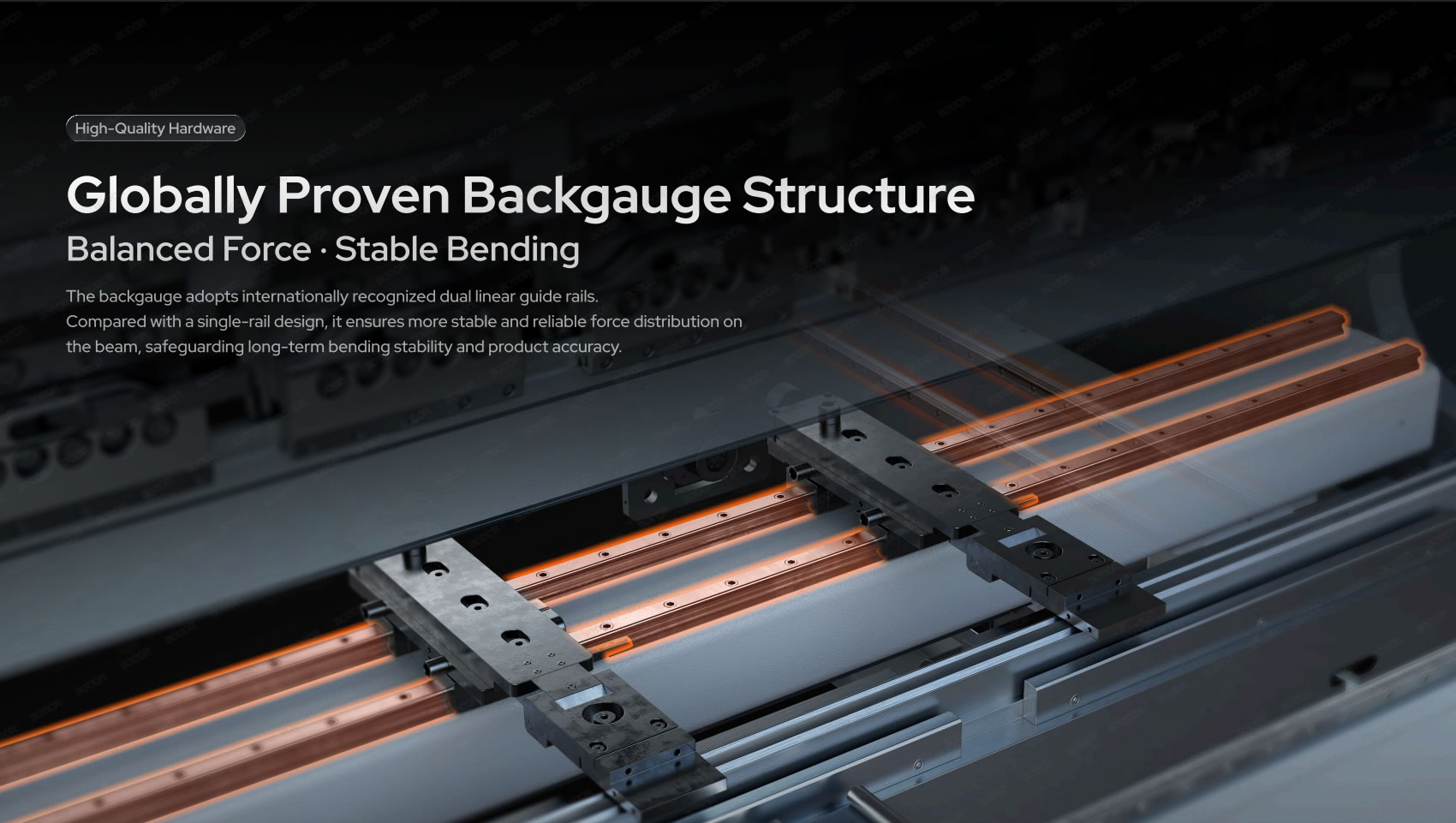

Globally Proven Backgauge Structure Balanced Force · Stable Bending The backgauge adopts internationally recognized dual linear guide rails. Compared with a single-rail design, it ensures more stable and reliable force distribution

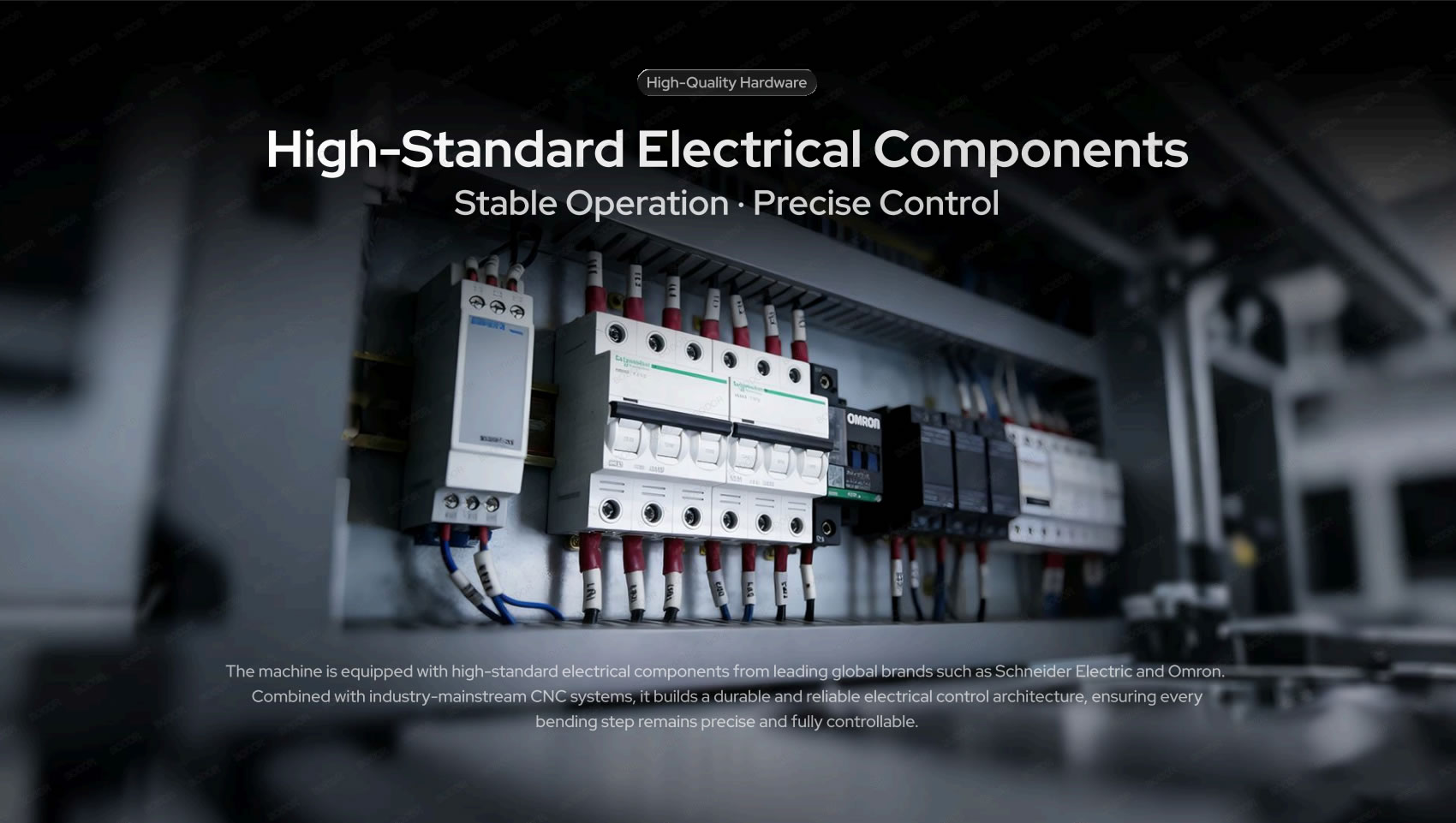

High-Standard Electrical Components Stable Operation Precise Control.The machine is equipped with high-standard eider Electric and Omron. Combined with industry-mainstream CNC systems, it builds a durable and reliable electrical control architecture, ensuring every bending step remains precise and fully controllable.

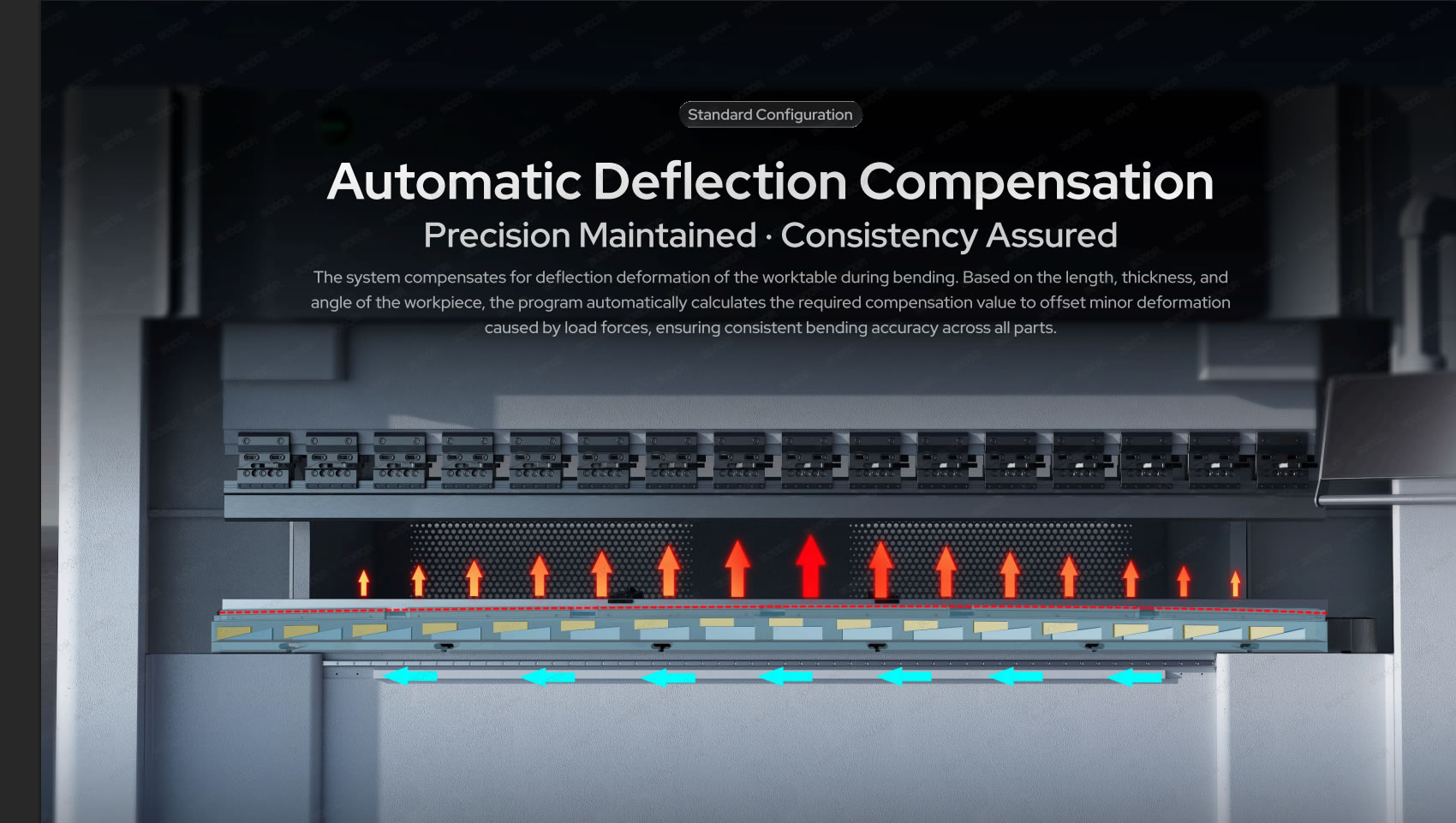

Automatic Deflection Compensation Precision Maintained · Consistency Assured The system compensates for deflection deformation of the worktable during bending. Based on the length, thickness, and angle of the workpiece, the program automatically calculates the required compensation value to offset minor deformation caused by load forces, ensuring consistent bending accuracy across all parts

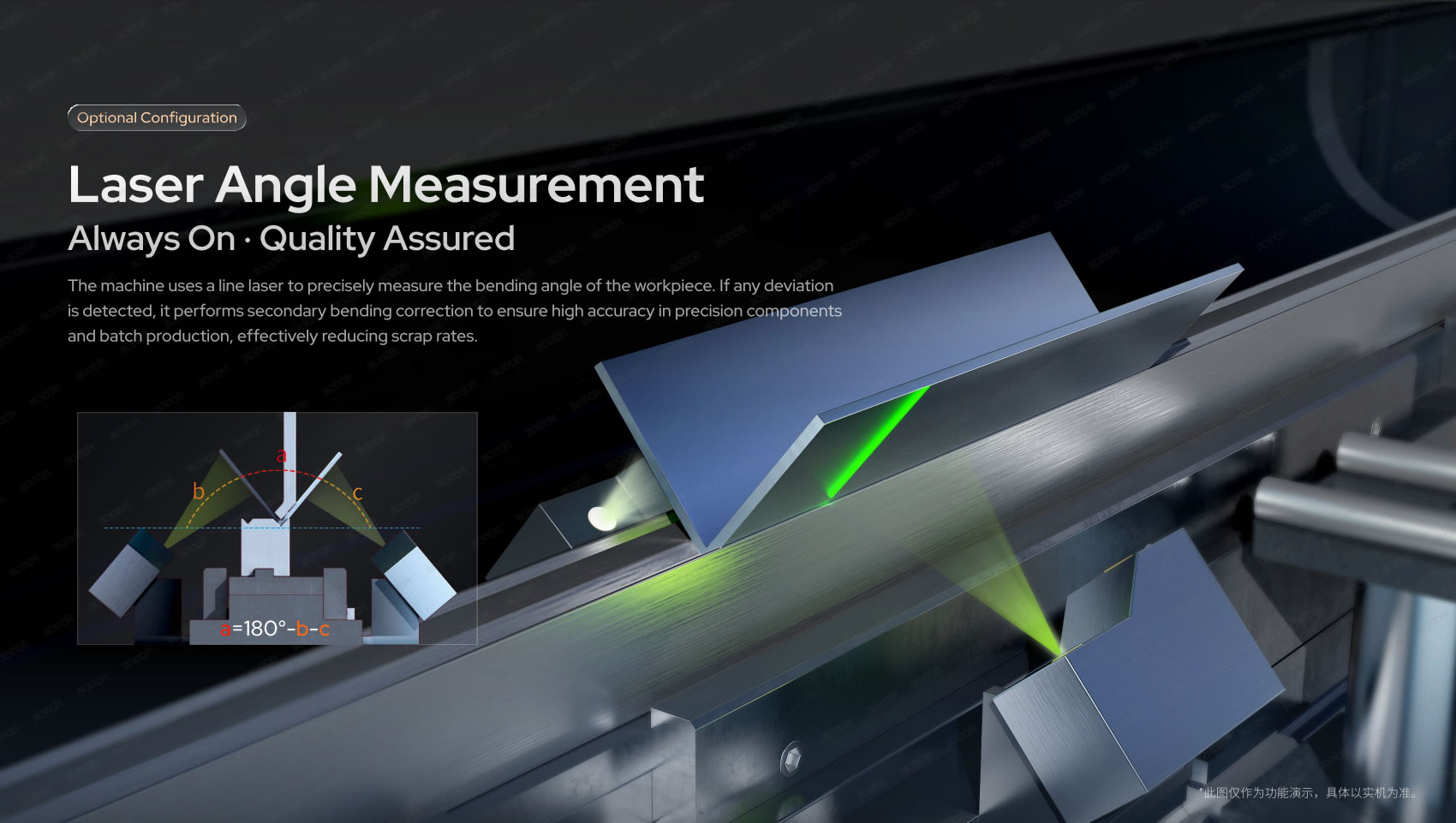

Laser Angle Measurement Always On · Quality Assured The machine uses a line laser to precisely measure the bending angle of the workpiece. If any deviation is detected, it performs secondary bending correction to ensure high accuracy in precision components and batch production, effectively reducing scrap rates.

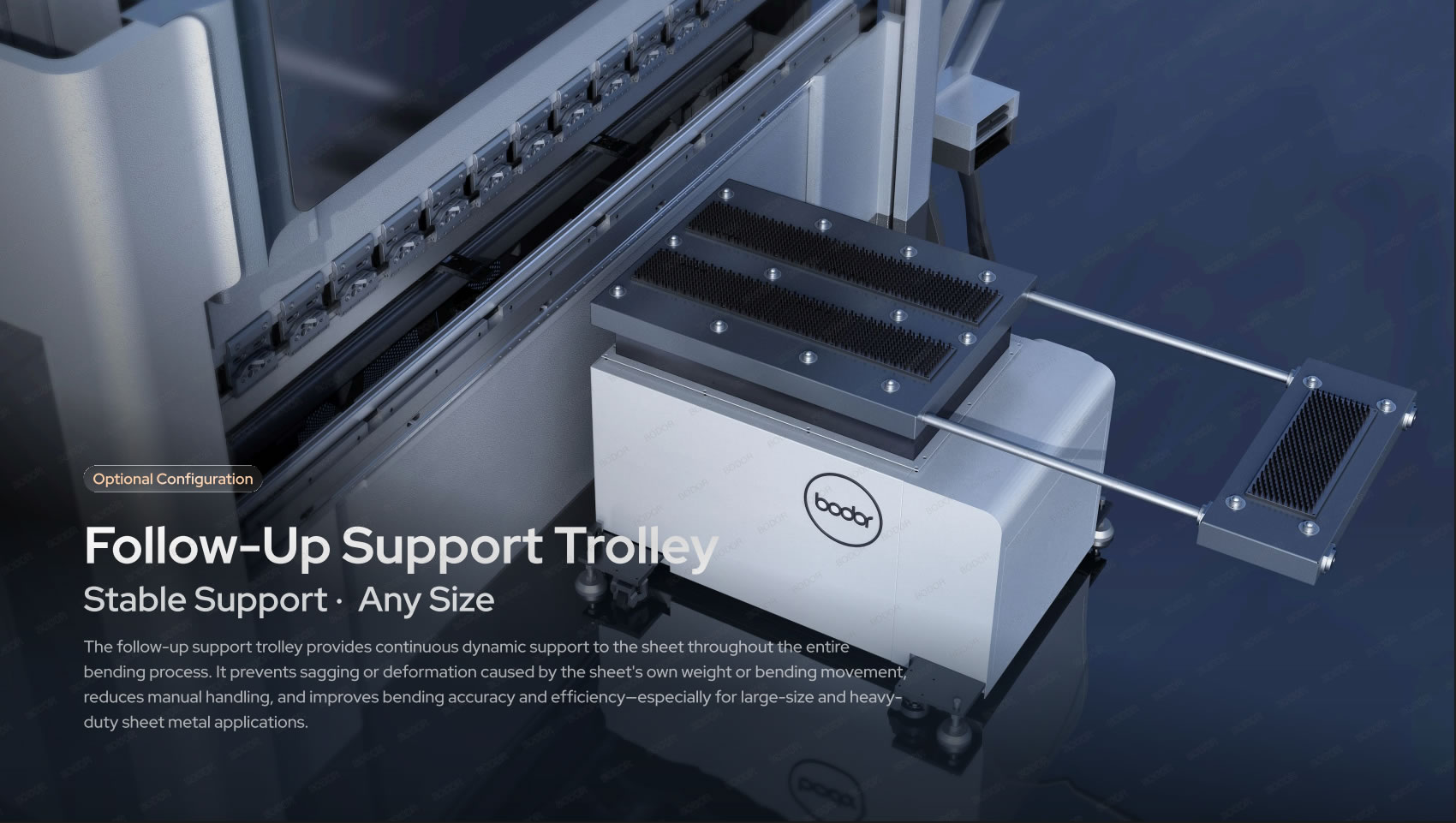

Follow-Up Support Trolley Stable Support · Any Size The follow-up support trolley provides continuous dynamic support to the sheet throughout the entire bending process. It prevents sagging or deformation caused by the sheet’s own weight or bending movement, reduces manual handling, and improves bending accuracy and efficiency especially for large-size and heavy-duty sheet metal applications.

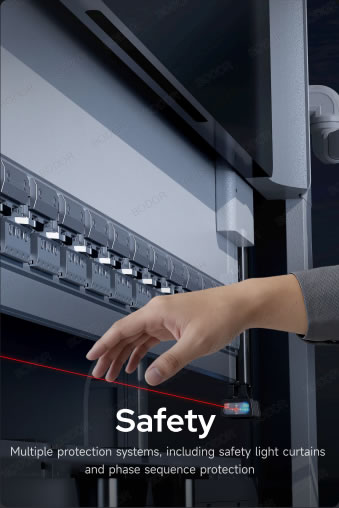

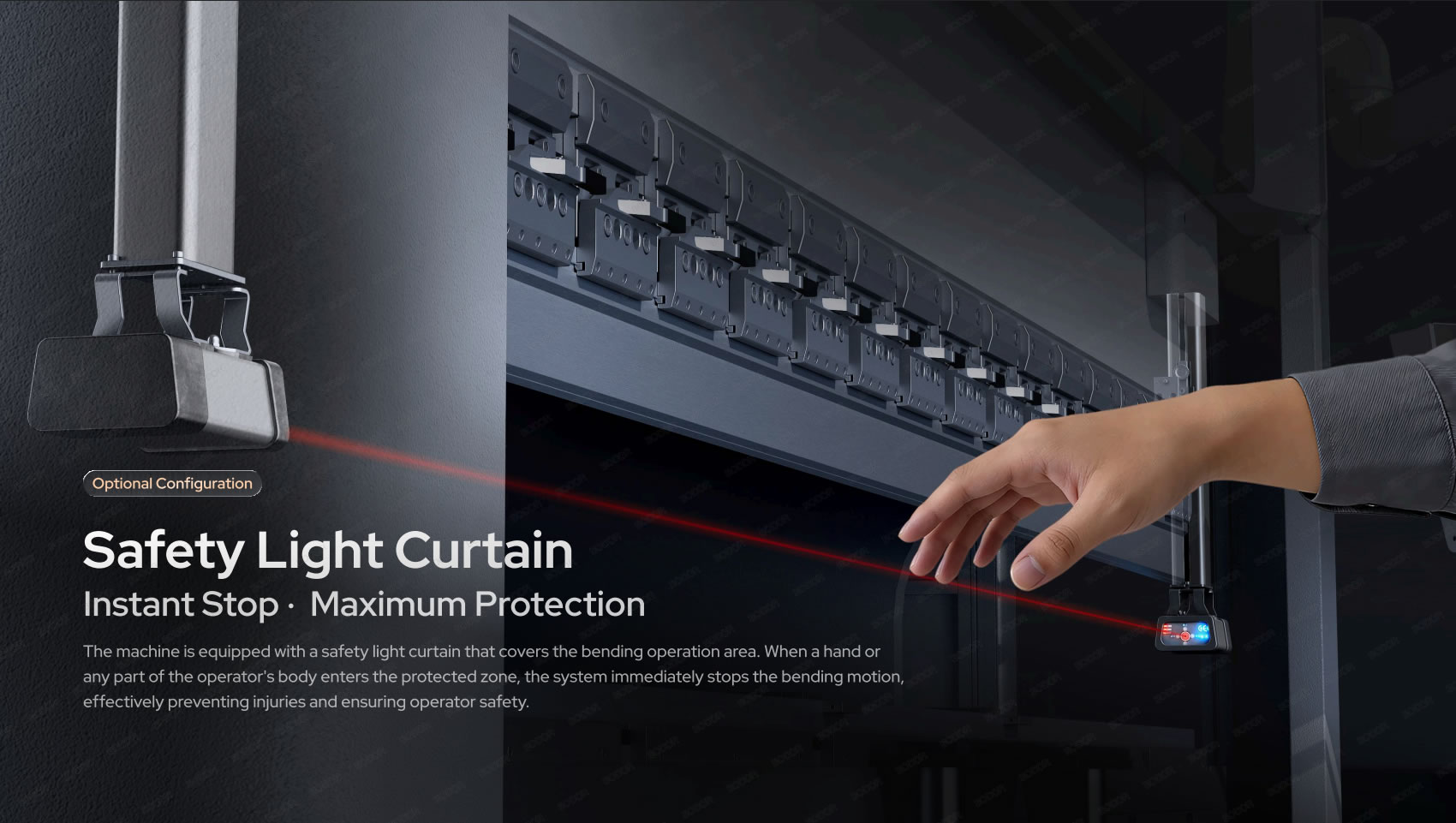

afety Light Curtain Instant Stop · Maximum Protection The machine is equipped with a safety light curtain that covers the bending operation area. When a hand or any part of the operators body enters the protected zone, the system immediately stops the bending motion, effectively preventing injuries and ensuring operator safety.
Global Service. Local service experts worldwide. 24/7 Support. Professional online after-sales service. 1 Year Warranty. Comprehensive machine coverage across all models.
Applicable Industries. Widely used in elevator cabins, shipbuilding, wind power, and telecommunications industries.

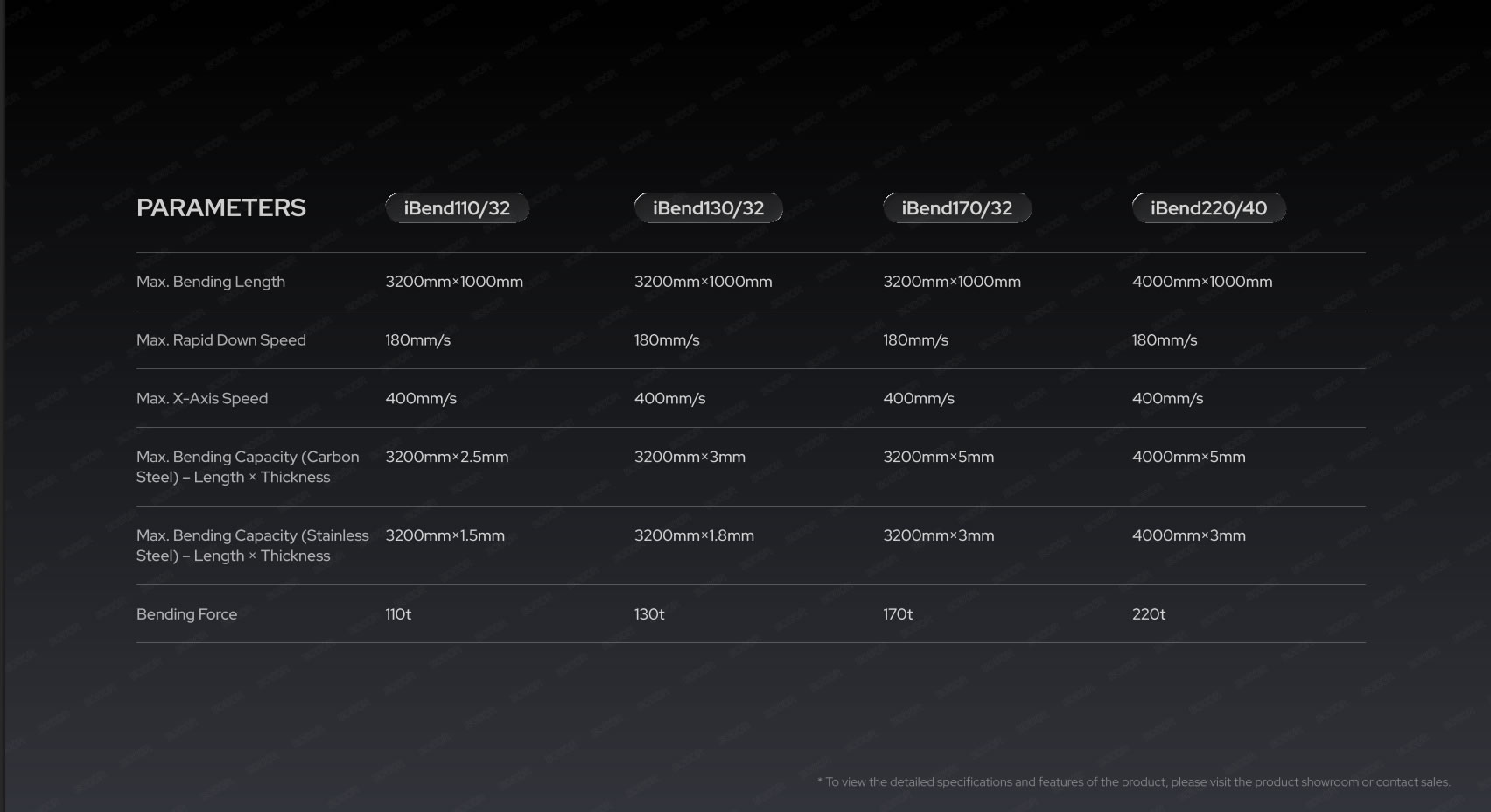

Parameters iBend110/32 iBend130/32 iBend170/32 iBend220/40 Max. Bending Length 3200mm×1000mm 3200mm×1000mm 3200mm×1000mm 4000mm×1000mm Max. Rapid Down Speed 180mm/s 180mm/s 180mm/s 180mm/s Max. X-Axis Speed 400mm/s 400mm/s 400mm/s 400mm/s Max. Bending Capacity (Carbon Steel) Length × Thickness 3200mm×2.5mm 3200mm×3mm 3200mm×5mm 4000mm×5mm Max. Bending Capacity (Stainless Steel) Length × Thickness3200mm×1.5mm 3200mm×1.8mm 3200mm×3mm 4000 110t 130t 170t 220t
Bodor iBend = International High-Standard Bending Machine.
